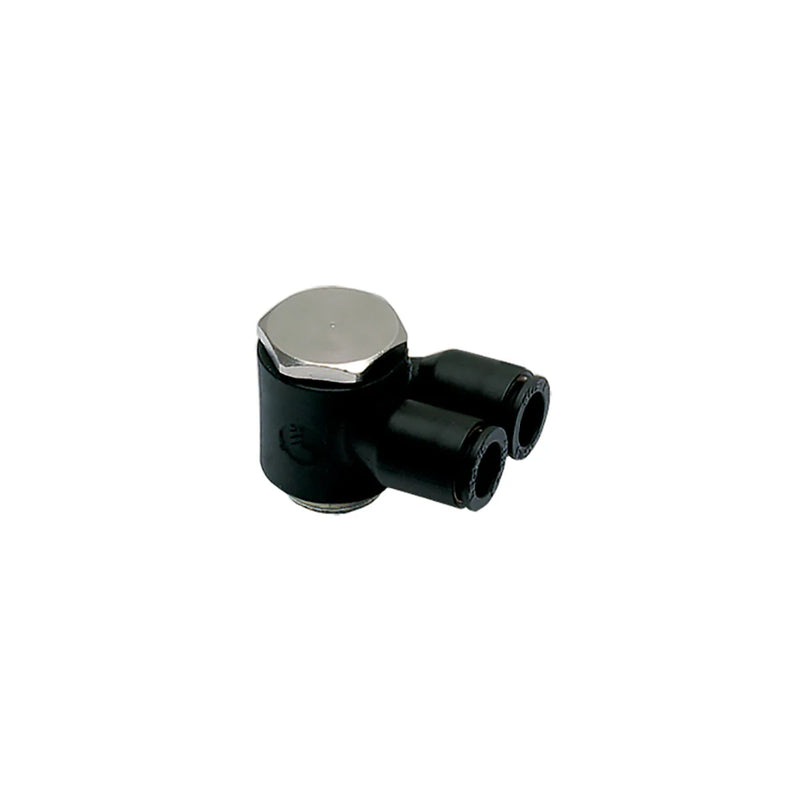

3149 08 17 by Parker | Legris Banjo Fittings | 8 mm Tube Size x 3/8" Male BSPP Thread | 42 mm Length | Twin Banjo | Polymer | Pack of 10

Save $15.90

$174.89

$174.89 - $174.89

$174.89

$158.99

$158.99 - $158.99

$158.99

by Parker Hannifin
LF 3000® Push-In Fittings / Banjo Fittings:3149 Twin Banjo, Male BSPP and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3149 08 17 Parker \| 10 \|
Series:	3149 Series
Shape (Orientation):	Banjo
Material(s):	Nickel-Plated Brass, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Screwed from above, for minimum space between connections 360° orientable Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration Body: Technical Polymer O-Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F	G	H	L	L1	N	Kg
3149 04 19*	4 mm	M5x0.8	4 mm	-	8.5 mm	13 mm	16 mm	4.5 mm	9 mm	.005 Kg
3149 04 10	4 mm	1/8"	4 mm	13 mm	10.5 mm	16.5 mm	18.5 mm	7 mm	11.5 mm	.018 Kg
3149 06 10	6 mm	1/8"	4 mm	13 mm	10.5 mm	16.5 mm	18.5 mm	7 mm	11.5 mm	.014 Kg
3149 06 13	6 mm	1/4"	5.5 mm	17 mm	13.5 mm	21 mm	27 mm	9.5 mm	14 mm	.035 Kg
3149 08 13	8 mm	1/4"	5.5 mm	17 mm	13.5 mm	21 mm	27 mm	9.5 mm	14.5 mm	.026 Kg
3149 08 17	8 mm	3/8"	5.5 mm	20 mm	16 mm	24.5 mm	31 mm	11 mm	17 mm	.053 Kg
3149 10 17	10 mm	3/8"	5.5 mm	20 mm	16 mm	24.5 mm	31 mm	11 mm	17 mm	.042 Kg

*With screwdriver slot
