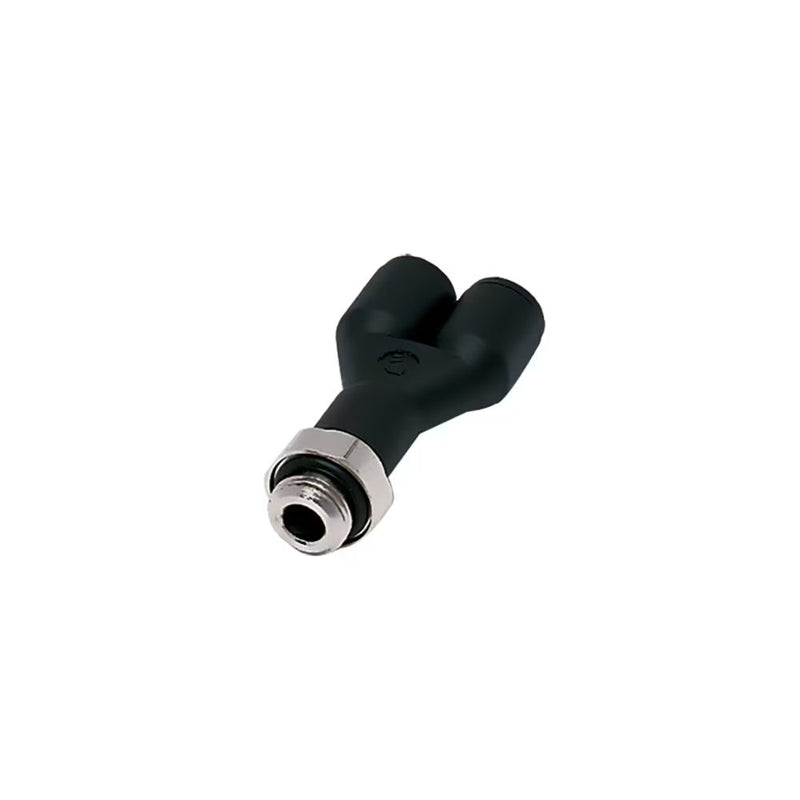

3158 12 21 by Parker | Legris Stud Fitting | 12 mm Push-to-Connect x 1/2" Male Swivel BSPP Thread | 24 mm Hex | Y | Polymer | Pack of 10

Save $21.15

$232.64

$232.64 - $232.64

$232.64

$211.49

$211.49 - $211.49

$211.49

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3158 Y Piece, Male BSPP and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3158 12 21 Parker \| 10 \|
Brand:	LF 3000®
Series:	3158 Series
Shape (Orientation):	Y
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight, Swivel

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F	H	K	L	N	Kg
3158 04 19	4 mm	M5x0.8	3.5 mm	8 mm	32.5 mm	8.5 mm	17.5 mm	9 mm	.006 Kg
3158 06 19	6 mm	M5x0.8	3.5 mm	10 mm	39.5 mm	10.5 mm	21.5 mm	11 mm	.009 Kg
3158 06 10	6 mm	1/8"	5 mm	13 mm	39 mm	10.5 mm	21.5 mm	11 mm	.012 Kg
3158 06 13	5.5 mm	1/4"	5.5 mm	16 mm	39.5 mm	10.5 mm	21.5 mm	11 mm	.017 Kg
3158 08 10	8 mm	1/8"	5 mm	13 mm	49 mm	13.5 mm	28 mm	14.5 mm	.020 Kg
3158 08 13	8 mm	1/4"	5.5 mm	16 mm	49.5 mm	13.5 mm	28 mm	14.5 mm	.023 Kg
3158 08 17	6 mm	3/8"	6 mm	19 mm	48 mm	13.5 mm	28 mm	14.5 mm	.031 Kg
3158 10 13	10 mm	1/4"	5.5 mm	16 mm	58 mm	16 mm	33 mm	17 mm	.032 Kg
3158 10 17	10 mm	3/8"	6 mm	20 mm	57.5 mm	16 mm	33 mm	17 mm	.040 Kg
3158 10 21	10 mm	1/2"	7 mm	24 mm	58 mm	16 mm	33 mm	17 mm	.054 Kg
3158 12 17	12 mm	3/8"	6 mm	20 mm	62 mm	19 mm	39 mm	20 mm	.044 Kg
3158 12 21	12 mm	1/2"	7 mm	24 mm	63 mm	19 mm	39 mm	20 mm	.050 Kg

The body swivels for positioning purposes.
