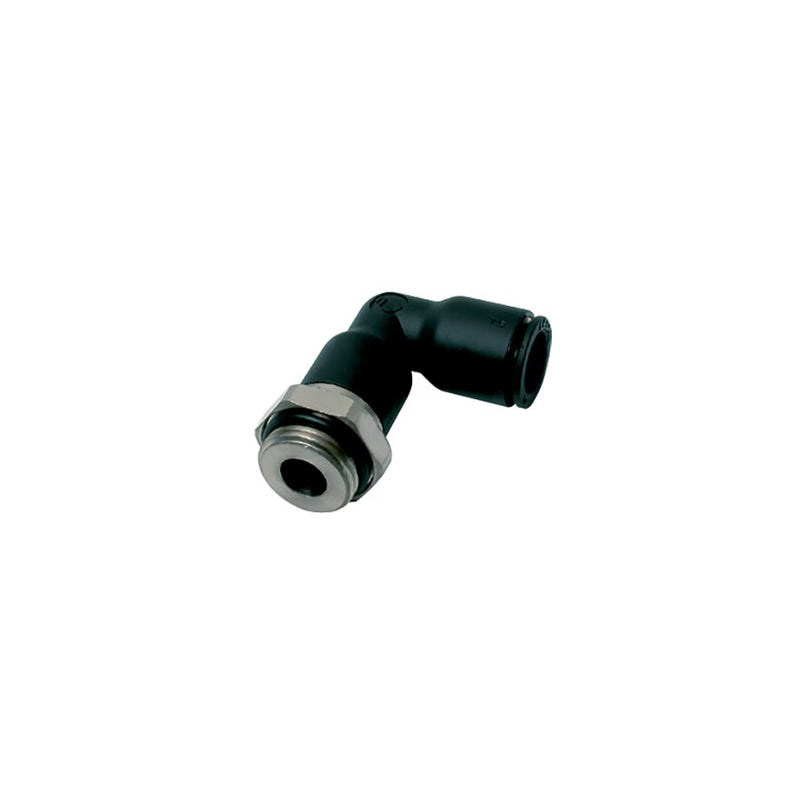

3169 53 20 by Parker | Legris Stud Fitting | 1/8" Push-to-Connect x 10-32 Male UNF Thread | 8 mm Hex | 1.11" Length | 90° Elbow | Nylon

3169 53 20 by Parker | Legris Stud Fitting | 1/8" Push-to-Connect x 10-32 Male UNF Thread | 8 mm Hex | 1.11" Length | 90° Elbow | Nylon | Pack of 10

Save $16.81 Save $16.81
$184.89
$184.89 - $184.89
$184.89
$168.08
$168.08 - $168.08
$168.08

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3169 - extended male elbow UNF or M7

Package Quantity: 10 Units

Specifications for Variant SKU: 3169 53 20 Parker | 10 |
Brand: LF 3000®
Series: 3169 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass, Stainless Steel, Nylon
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight, Coated, Swivel
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • Silicone-Free
Markets:
  • Pneumatic
  • Industrial
  • Automation
  • Robotic
  • Printing
  • Packaging
  • Textile
Applications:
  • Air
  • Cutting Fluids
  • Inert Gases
  • Vacuum
Pressure Range
  • Up to 290 psi (20 bar)
    3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range
  • -4° to +175° F (-20° to +80° C)
    3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability
  • 28" Hg
Part Number ØD UNF / Metric (C) E F G H L Oz
3169 53 20 1/8" 10-32 .20" 8 mm .33" .91" .75" .25 Oz
3169 04 20 5/32" 10-32 .20" 8 mm .33" .91" .75" .25 Oz
3169 56 20 1/4" 10-32 .20" 11 mm .33" 1.10" .93" .32 Oz
3169 56 55 1/4" M7x1 .18" 9 mm .43" 1.17" .93" .35 Oz
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
