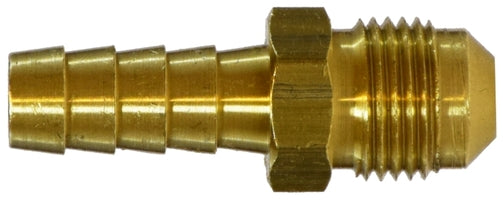

32085 (32-081) Midland Hose Barb 45° Flare Adapter - 3/8" Hose ID x 1/2" Male 45° Flare - Brass

32085 by Midland | Hose Barb Flare | 3/8" Hose ID x 1/2" Male 45° Flare | 45° Elbow | Adapter | Brass

Save $0.72

$6.49

$6.49 - $6.49

$6.49

$5.77

$5.77 - $5.77

$5.77

Midland Industries
Brass Fitting - Hose Barb - 45° Flare Adapter

Inventory @ Manufacturers Warehouse: 87 Units

Quantity

Specifications for Variant SKU: 32085 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 1/2in Male SAE 45 Flare
Material(s):	Brass

SPECIFICATIONS

Applications:	N/A	Used With:	These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
SAE Rating:	N/A	Conformance:	N/A
Vibration:	N/A	Temperature Range:	-40°F to +160°F at 150 PSI maximum.
Tolerance:	+/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical.	Lead Free:	N/A
Assembly Instructions:	1. Cut hose cleanly and squarely to length. 2. Slide clamp on hose. 3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex. 4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning.

Hose Size	3/16"	1/4"	5/16"	3/8"	1/2"	5/8"	3/4"
A	1/4"	1/4"	1/4"	1/8"	1/8"	1/8"	1/8"

Crossover Series:
29SAE	129SAE	142	201BF	KF-MS	KDS


Part Number	Hose I.D. x Male 45° Flare	Thread	A	B	Hex	Approx. Weight (Lbs.)
32322 (32-322)	3/16" x 1/4"	7/16-20	1.50"	0.75"	0.43"	0.03
32081 (32-081)	1/4" x 1/4"	7/16-20	1.72"	0.97"	0.43"	0.03
32082 (32-082)	1/4" x 3/8"	5/8-18	1.82"	0.97"	0.62"	0.07
32083 (32-083)	5/16" x 5/16"	1/2-20	1.75"	0.97"	0.50"	0.08
32084 (32-084)	3/8" x 3/8"	5/8-18	1.82"	0.97"	0.62"	0.08
32085 (32-085)	3/8" x 1/2"	3/4-16	1.97"	0.97"	0.75"	0.10
32086 (32-086)	1/2" x 1/2"	3/4-16	1.97"	0.97"	0.75"	0.10
