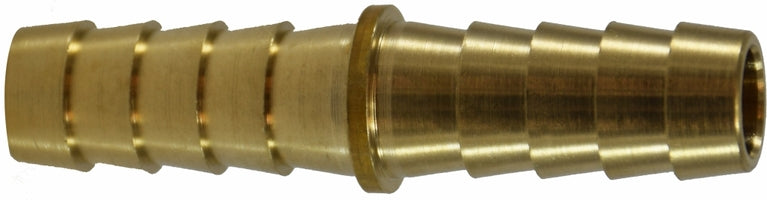

32088 (32-088) Midland Mender/Splicer - 5/8" Hose ID x 3/8" Hose ID - Brass

32088 by Midland | Mender/Splicer | 5/8" Hose ID x 3/8" Hose ID | Brass

Save $0.68 Save $0.68
$6.13
$6.13 - $6.13
$6.13
$5.45
$5.45 - $5.45
$5.45

Midland Industries
Brass Fitting - Hose Barb - Mender/ Splicer

Inventory @ Manufacturers Warehouse: 395 Units
Specifications for Variant SKU: 32088 Midland
Shape (Orientation): Straight
Ends Configuration: 5/8in Hose Barb, 3/8in Hose Barb
Material(s): Brass

SPECIFICATIONS

Applications: N/A Used With: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: -40°F to +160°F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Lead Free: N/A
Assembly Instructions: 1. Cut hose cleanly and squarely to length.
2. Slide clamp on hose.
3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning.
Hose Size 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4"
A 1/4" 1/4" 1/4" 1/8" 1/8" 1/8" 1/8"
Crossover Series:
MSB 122HBL HM 129 178 73 108 29S 129S
Part Number Hose I.D. x Hose I.D. A B O.D. Approx. Weight
(Lbs.)
32091
(32-091)		 1/8" 0.98" 0.45" 0.31" 0.01
32092
(32-092)		 3/16" 1.62" 0.77" 0.36" 0.02
32093
(32-093)		 1/4" 2.00" 0.96" 0.37" 0.02
32961
 1/4" x 1/8" 1.50" 0.97" 0.37" 0.02
32094
(32-094)		 5/16" 2.00" 0.96" 0.39" 0.02
32090
(32-090)		 5/16" x 1/4" 2.00" 0.97" 0.50" 0.03
32095
(32-095)		 3/8" 2.00" 0.97" 0.51" 0.04
32960 3/8" x 1/8" 1.58" 1.00" 0.50" 0.03
32961 3/8" x 3/16" 1.75" 1.00" 0.50" 0.03
32080
(32-080)		 3/8" x 1/4" 2.06" 0.97" 0.56" 0.03
32375
(32-375)		 3/8" x 5/16" 2.00" 0.97" 0.50" 0.03
32096
(32-096)		 1/2" 2.00" 0.96" 0.62" 0.06
32087
(32-087)		 1/2" x 3/8" 2.06" 0.97" 0.71" 0.06
32097
(32-097)		 5/8" 2.05" 0.96" 0.75" 0.08
32088
(32-088)		 5/8" x 3/8" 2.06" 0.97" 0.75" 0.06
32376
(32-376)		 5/8" x 1/2" 2.06" 0.97" 0.75" 0.07
32098
(32-098)		 3/4" 2.50" 1.15" 0.87" 0.10
32089
(32-089)		 3/4" x 1/2" 2.28" 1.19" 0.87" 0.10
32379
(32-379)		 3/4" x 5/8" 2.02" 0.96" 0.87" 0.10
32380
(32-380)		 1" x 3/4" 2.58" 1.19" 1.12" 0.18
32099
(32-099)		 1" 3.00" 1.44" 1.12" 0.23
