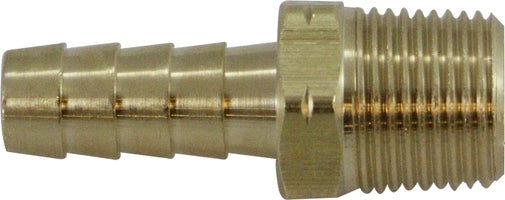

32452 (32-452) Midland Male Rigid BSPT Barb Adapter - 3/8" Hose ID x 1/4" Male BSPT - Brass

32452 by Midland | Rigid BSPT Barb | 3/8" Hose ID x 1/4" Male BSPT | Adapter | Brass

Save $0.21 Save $0.21
$1.87
$1.87 - $1.87
$1.87
$1.66
$1.66 - $1.66
$1.66

Midland Industries
Brass Fitting - Hose Barb - Rigid Male BSPT Barb Adapter

Inventory @ Manufacturers Warehouse: 585 Units
Specifications for Variant SKU: 32452 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/4in Male BSPT
Material(s): Brass

SPECIFICATIONS

Applications: N/A Used With: These fittings are intended for use with hose clamp, similar type clamp or a crimped ferrule.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: -40°F to +160°F at 150 PSI maximum.
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical. Lead Free: N/A
Assembly Instructions: 1. Cut hose cleanly and squarely to length.
2. Slide clamp on hose.
3. Lubricate hose. Push hose on fitting until hose bottoms against stop ring or hex.
4. Position hose clamp as shown below and secure with a screwdriver or wrench. Maintain "A" dimension noted below for proper clamp positioning.
Hose Size 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4"
A 1/4" 1/4" 1/4" 1/8" 1/8" 1/8" 1/8"
Crossover Series:
29SWV 29MS
Part Number Hose I.D. x Male BSPT
32450
(32-450)		 1/4" x 1/8"
32451
(32-451)		 1/4" x 1/4"
32452
(32-452)		 3/8" x 1/4"
32453
(32-453)		 3/8" x 3/8"
32454
(32-454)		 3/8" x 1/2"
32455
(32-455)		 1/2" x 3/8"
32456
(32-456)		 1/2" x 1/2"
32457
(32-457)		 3/4" x 3/4"
32458
(32-458)		 1" x 1"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
