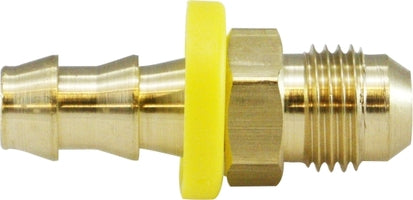

32900 (32-900) Midland Push On Hose Barb Fitting - 37° Male JIC Flare Adapter - 7/16-20 UNF Thread - 1/4" Hose ID x 1/4" Male JIC - Brass

32900 by Midland | Push On Hose Barb Fitting | 37° JIC Flare | 7/16-20 UNF Thread | 1/4" Hose ID x 1/4" Male JIC | Adapter | Brass

Save $0.46

$4.17

$4.17 - $4.17

$4.17

$3.71

$3.71 - $3.71

$3.71

Midland Industries
Brass Fitting - Push On Barb Fitting - 37° Male JIC Flare Adapter

Inventory @ Manufacturers Warehouse: 15 Units

Quantity

Specifications for Variant SKU: 32900 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male JIC, 1/4in Push-On Hose Barb
Material(s):	Brass

SPECIFICATIONS

Applications:	Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI	Advantages:	Easy assembly. No clamps needed.
SAE Rating:	N/A	Lead Free:	No

Assembly Instructions:
1) Lubricate insert. 2) Hold hose at angle as shown & push on and up over first barb. 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2) Bend hose and remove with a quick pull.

Crossover Series:
29PO11	129PO6


Part Number	Hose ID x Male 37° JIC Flare	UNF Thread	A	B	Hex	Approx. Weight (Lbs.)
32900 (30-900)	1/4" x 1/4"	7/16-20	1.57"	0.84"	0.50"	0.04
32901 (32-901)	1/4" x 5/16"	1/2-20	1.60"	0.83"	0.56"	0.04
32906 (32-906)	1/4" x 3/8"	9/16-18	1.63"	0.77"	0.62"	0.05
32902 (32-902)	3/8" x 3/8"	9/16-18	1.78"	0.97"	0.62"	0.06
32903 (32-903)	1/2" x 1/2"	3/4-16	1.97"	0.97"	0.75"	0.10
32907 (32-907)	5/8" x 5/8"	7/8-14	2.62"	1.50"	0.93"	0.19
32905 (32-905)	3/4" x 3/4"	1-1/16-12	2.79"	1.50"	1.12"	0.29
