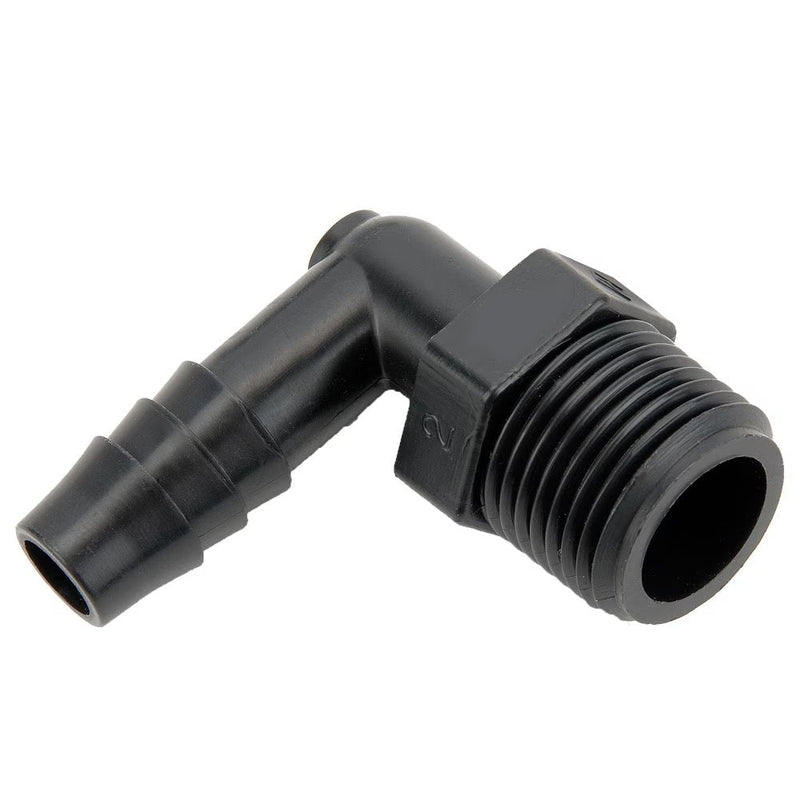

329HB-10-8PP by Parker | Barbed Fitting | 5/8" Hose Barb x 1/2" Male NPT Thread | 7/8" Hex | 90° Elbow | Black | Polypropylene

Save $0.14

$1.56

$1.56 - $1.56

$1.56

$1.42

$1.42 - $1.42

$1.42

by Parker Hannifin
Barbed Fittings:329HB - male elbow fractional inch barb to NPT

Quantity

Specifications for Variant SKU: 329HB-10-8PP Parker
Series:	329HB Series
Shape (Orientation):	90° Elbow
Material(s):	Polypropylene

Product Features:	Available in black polypropylene and white nylon FDA compliant material NSF/ANSI 51 Uniprene washer Up to 1 1/2” sizes
Markets:	Water Beverage Dispensing Bottling Semi-Conductor
Applications:	Water Beverages Cooling Systems
Pressure Range:	Up to 125 PSI (8.6 bar)
Temperature Range:	Nylon: -40° to +200° F (-40° to +93.3° C) Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:	Vinyl Polyurethane Rubber Hose


Part Number (Black Polypropylene)	ID	ØD (NPT)	ØD	C	M	N	D
329HB-10-8PP	5/8"	1/2"	.68"	7/8"	1.30"	1.73"	.48"
Part Number (White Nylon)	ID	ØD (NPT)	ØD	C	M	N	D
329HB-5-2N	5/16"	1/8"	.37"	7/16"	1.18"	1.06"	.22"
329HB-16-12N	1"	3/4"	1.11"	1-1/8"	1.58"	1.93"	.86"
329HB-16-24N	1"	1-1/2"	1.12"	1-1/2"	2.27"	3.11"	.84"
329HB-24-24N	1-1/2"	1-1/2"	1.60"	1-1/2"	2.77"	3.10"	1.30"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
