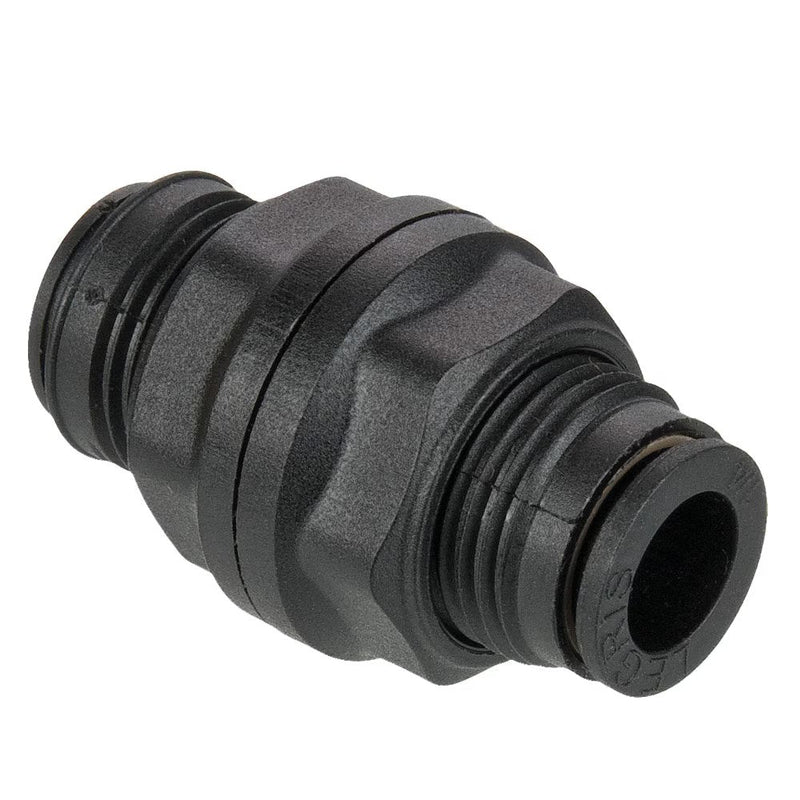

32PLPBH-2 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Bulkhead Union Fittings | 1/8" Push-to-Connect | 13mm Hex | .98" Length (L1 + L2) | Straight | Glass-Reinforced Nylon | Pack of 10

Minimum Order Quantity: 5 Units

Save $4.57

$53.24

$53.24 - $53.24

$53.24

$48.67

$48.67 - $48.67

$48.67

by Parker Hannifin
Push-to-Connect Fittings:32PLPBH Bulkhead Union

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 32PLPBH-2 Parker \| 10 \|
Series:	32PLPBH Series
Shape (Orientation):	Straight
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	Hex (C)	K (Max)	L1	L2	Bulkhead Thread	Bulkhead Hole Diameter
32PLPBH-2	1/8"	13 mm	.22"	.37"	.61"	M10 X 1	12 mm
32PLPBH-4	1/4"	16 mm	.35"	.37"	.81"	M15 X 1	16 mm
32PLPBH-6	3/8"	22 mm	.57"	.51"	1.18"	M18 X 1.5	24 mm
32PLPBH-8	1/2"	29 mm	.81"	.67"	.61"	M25 X 1.5	26 mm
