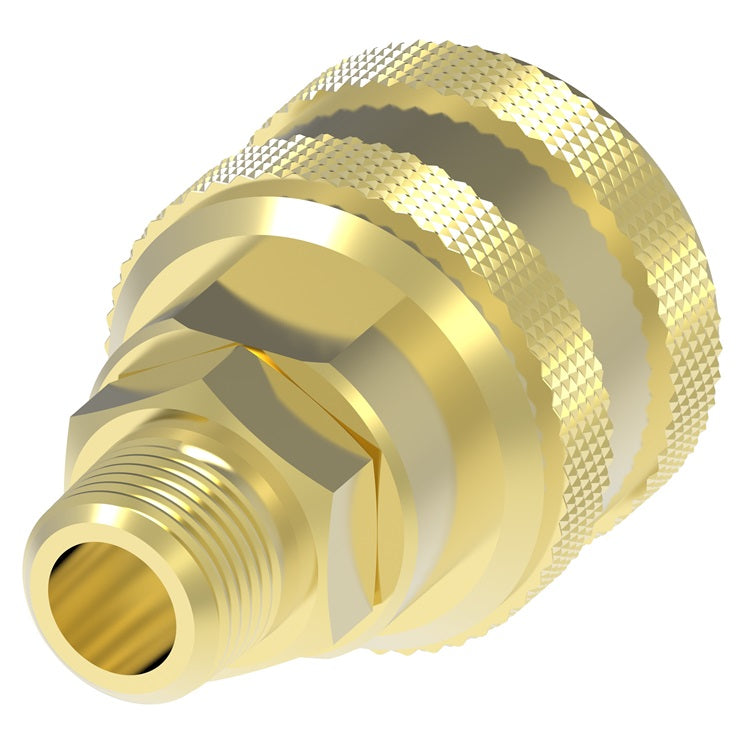

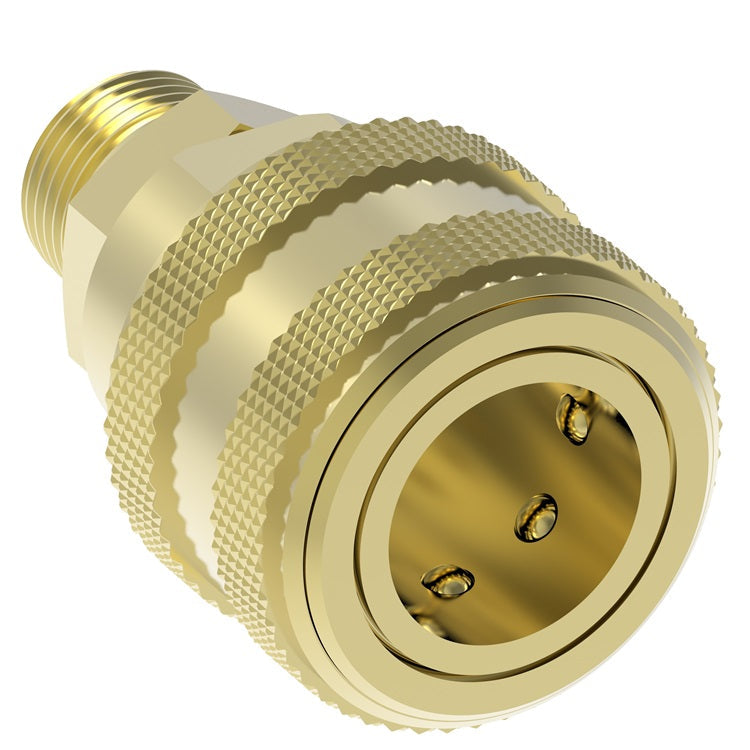

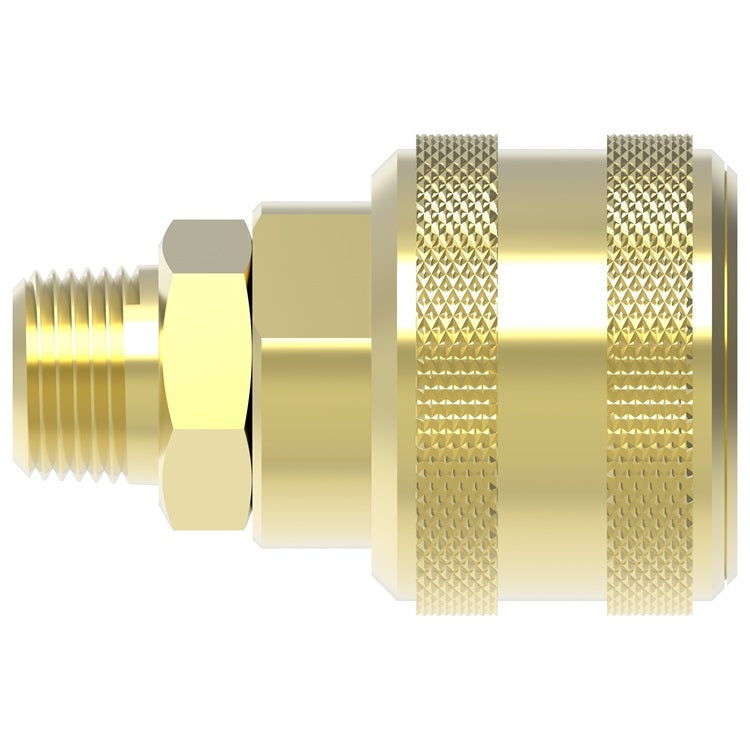

3300E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3000 Series | 3/8" Male NPTF x 1/4" Body Size | Socket | NBR Seal | Brass

3300E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3000 Series | 3/8" Male NPTF x 1/4" Body Size | Socket | NBR Seal | Brass

$18.45 - $18.45

$18.45

$18.45 - $18.45

$18.45

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 3000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 3000/4000/5000/6000 Series Industrial Interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids.

This series sets the industry standard for pin lock style pneumatic couplings.

Quantity

Specifications for Variant SKU: 3300E Danfoss
Brand:	Hansen
Series:	3000 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Features:	Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:	Industrial Breathing Air General Pneumatics Maintenance & Repair Fluid Transfer
Materials:	Standard body material: Brass Standard seal material: Nitrile (NBR)
Specifications:	All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.

Series	Body Size	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
3000	1/4"	138 bar	2,000 psi	552 bar	8,000 psi	680 lpm	24 gpm

Interchangeability
All Sizes	1/4" & 1/2"
US Industrial Interchange	ISO 6150 Series B A-A-59439 (former MIL-C-4109)


Socket/Female (Figure 1)					Plug/Male (Figure 2)
3000 Series \| Sockets
Part Number	Coupling Type	Body Size	Port Size	Thread	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Port Size	Thread	Material	Figure	A	B	Hex
2900	Socket/Female	1/4"	1/8"	1/8-27 Male NPTF	Brass	1	2.00" (50.80mm)	1.19" (30.23mm)	0.69" (17.53mm)
3100E	Socket/Female	1/4"	1/4"	1/4-18 Male NPTF	Brass	1	2.19" (55.63mm)	1.19" (30.23mm)	0.69" (17.53mm)
3300E	Socket/Female	1/4"	3/8"	3/8-18 Male NPTF	Brass	1	2.15" (54.61mm)	1.19" (30.23mm)	0.69" (17.53mm)
3000 Series \| Plugs
Part Number	Coupling Type	Body Size	Port Size	Thread	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Port Size	Thread	Material	Figure	C	D	Hex
10	Plug/Male	1/4"	1/4"	1/4-18 Male NPTF	Steel	2	1.75" (44.45mm)	0.62" (15.75mm)	0.56" (14.22mm)
10C**	Plug/Male	1/4"	1/4"	1/4-18 Male NPTF	Steel	2	1.75" (44.45mm)	0.65" (16.51mm)	0.56" (14.22mm)
10G***	Plug/Male	1/4"	1/4"	1/4-18 Male NPTF	Steel	2	1.75" (44.45mm)	0.65" (16.51mm)	0.56" (14.22mm)
12E	Plug/Male	1/4"	1/8"	1/8-27 Male NPTF	Steel	2	1.59" (40.38mm)	0.58" (14.73mm)	0.50" (12.7mm)
12G***	Plug/Male	1/4"	1/8"	1/8-27 Male NPTF	Steel	2	2.38" (60.45mm)	0.77" (19.55mm)	0.69" (17.52mm)
14	Plug/Male	1/4"	3/8"	3/8-18 Male NPTF	Brass	2	1.75" (44.45mm)	0.79" (20.07mm)	0.69" (17.53mm)
14G***	Plug/Male	1/4"	3/8"	3/8-18 Male NPTF	Steel	2	2.53" (64.26mm)	0.77" (19.55mm)	0.69" (17.52mm)
B10	Plug/Male	1/4"	1/4"	1/4-18 Male NPTF	Brass	2	1.75" (44.45mm)	0.62" (16.25mm)	0.56" (14.22mm)
LL10	Plug/Male	1/4"	1/4"	1/4-18 Male NPTF	Stainless Steel	2	1.75" (44.45mm)	0.62" (16.51mm)	0.56" (14.22mm)
10NK	Plug/Male	1/4 "	1/4"	1/4-18 Male NPTF	Nickel Plated Steel	2	1.75" (44.45mm)	0.62" (15.75mm)	0.56" (14.22mm)

**With Ball Check
***With Bleeder Ball Check - Reduces Hose Whip
