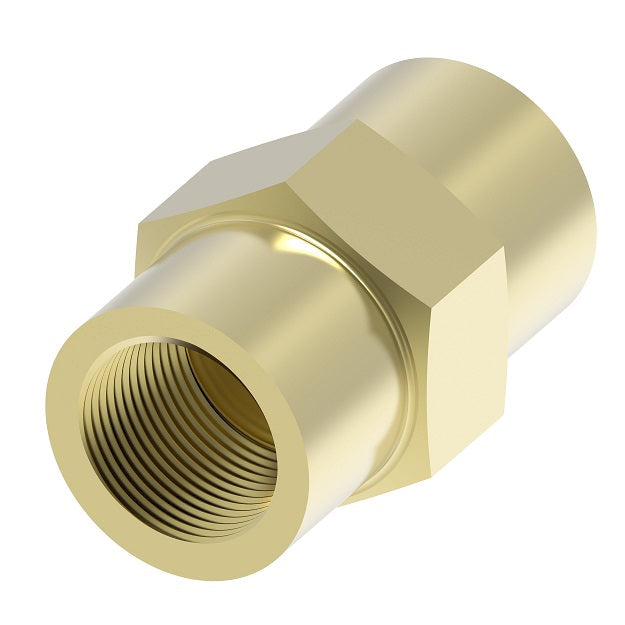

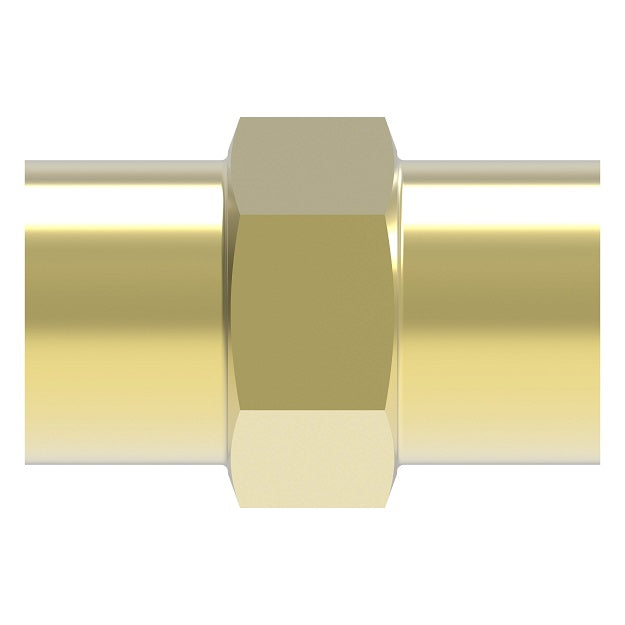

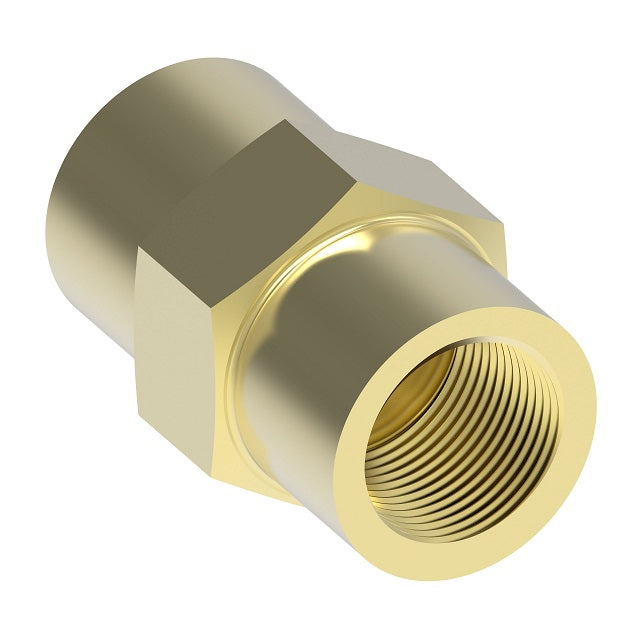

3300X4X2 by Danfoss | Pipe Adapter | Reducer Coupling | 1/4" Female NPTF x 1/8" Female NPTF | Brass

3300X4X2 by Danfoss | Pipe Adapter | Reducer Coupling | 1/4" Female NPTF x 1/8" Female NPTF | Brass

Name: 3300X4X2 by Danfoss | Pipe Adapter | Reducer Coupling | 1/4" Female NPTF x 1/8" Female NPTF | Brass
Brand: Danfoss/Eaton
SKU: 3300X4X2 Danfoss
Price: 3.38 USD
Availability: InStock

$3.38 - $3.38

$3.38

$3.38 - $3.38

$3.38

Aeroquip® by Danfoss
Pipe Adapter - Reducer Coupling

Quantity

Specifications for Variant SKU: 3300X4X2 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female NPTF, 1/8in Female NPTF
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Ref. SAE No. 130138 Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Female Pipe Thread A	Female Pipe Thread A1	Hex C	D	L
3300X4X2	1/4"	1/8"	3/4"	0.339"	0.96"
3300X6X2	3/8"	1/8"	7/8"	0.339"	0.94"
3300X6X4	3/8"	1/4"	7/8"	0.438"	1.16"
3300X8X6	1/2"	3/8"	1-1/16"	0.562"	1.38"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
