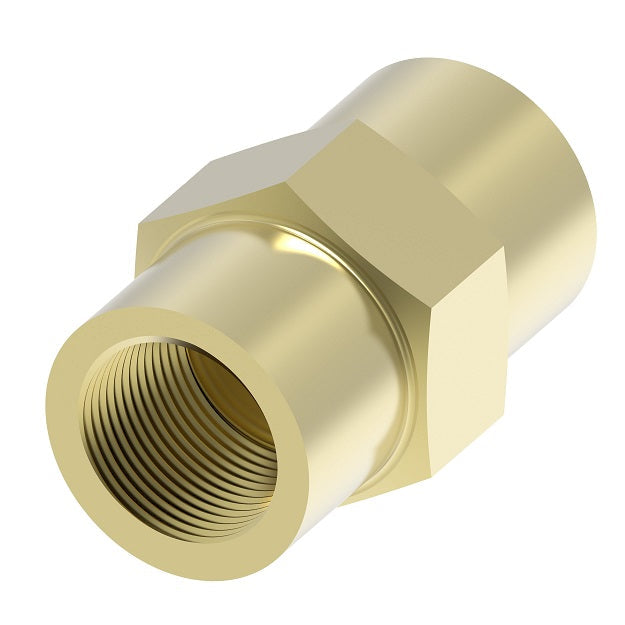

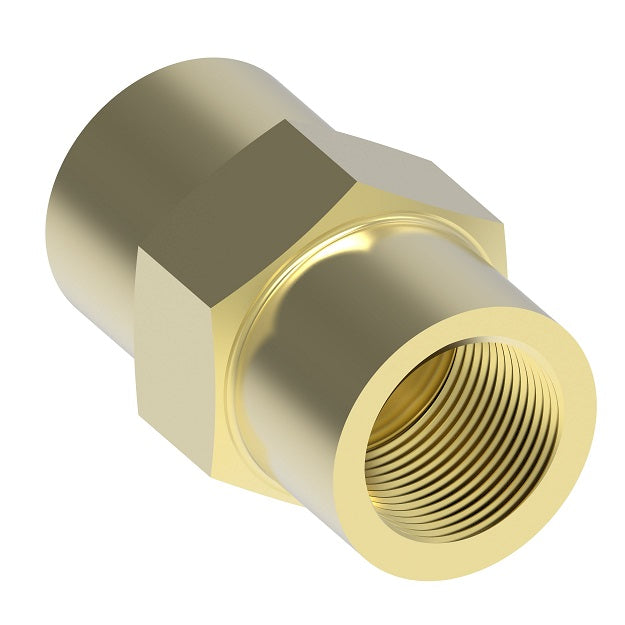

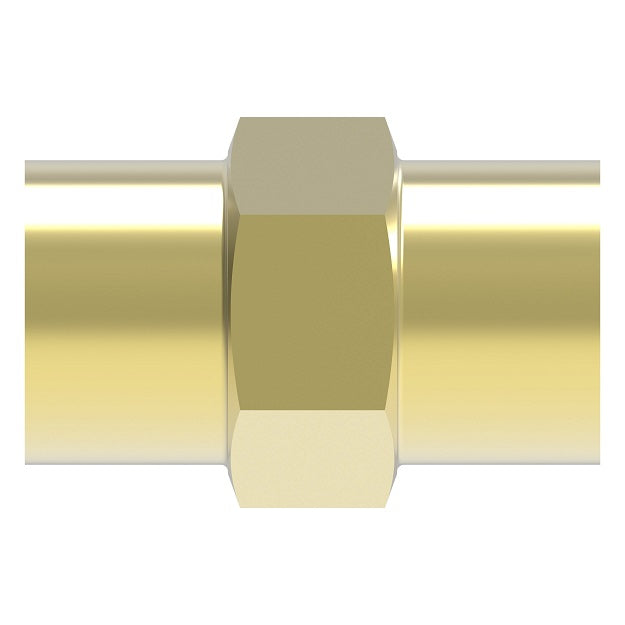

3300X6X2 by Danfoss | Pipe Adapter | Reducer Coupling | 3/8" Female NPTF x 1/8" Female NPTF | Brass

3300X6X2 by Danfoss | Pipe Adapter | Reducer Coupling | 3/8" Female NPTF x 1/8" Female NPTF | Brass

Name: 3300X6X2 by Danfoss | Pipe Adapter | Reducer Coupling | 3/8" Female NPTF x 1/8" Female NPTF | Brass
Brand: Danfoss/Eaton
SKU: 3300X6X2 Danfoss
Price: 4.1 USD
Availability: InStock

$4.10 - $4.10

$4.10

$4.10 - $4.10

$4.10

Aeroquip® by Danfoss
Pipe Adapter - Reducer Coupling

Specifications for Variant SKU: 3300X6X2 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female NPTF, 1/8in Female NPTF
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Ref. SAE No. 130138 Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Female Pipe Thread A	Female Pipe Thread A1	Hex C	D	L
3300X4X2	1/4"	1/8"	3/4"	0.339"	0.96"
3300X6X2	3/8"	1/8"	7/8"	0.339"	0.94"
3300X6X4	3/8"	1/4"	7/8"	0.438"	1.16"
3300X8X6	1/2"	3/8"	1-1/16"	0.562"	1.38"
