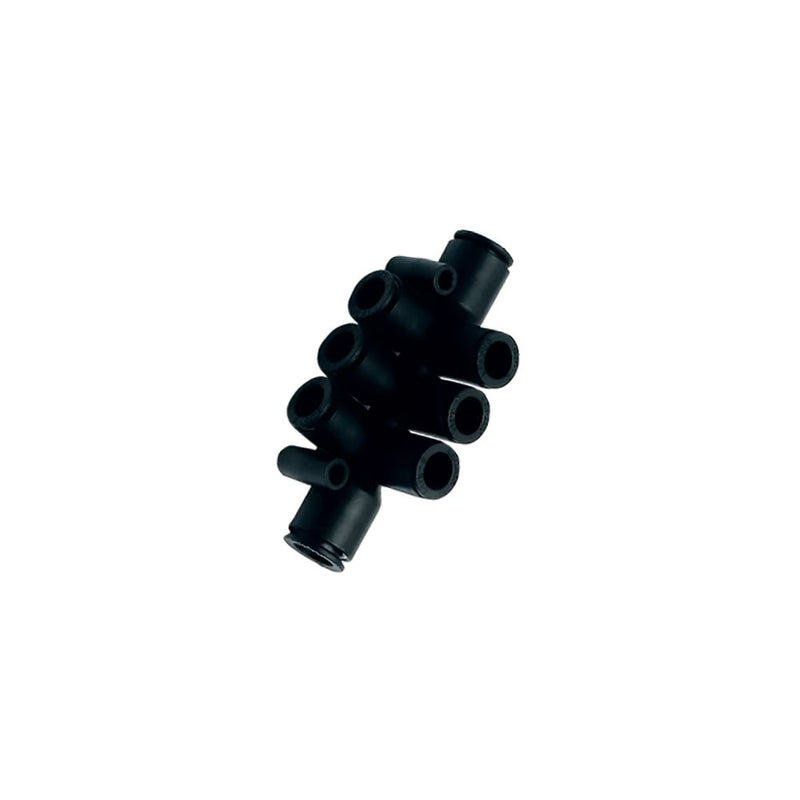

3306 08 06 by Parker | Legris Multiple Fittings | 8 mm Push-to-Connect x 6 mm Push-to-Connect | 73 mm Length | Multiple 90° Elbow | Polymer

3306 08 06 by Parker | Legris Multiple Fittings | 8 mm Push-to-Connect x 6 mm Push-to-Connect | 73 mm Length | Multiple 90° Elbow | Polymer | Pack of 3

Save $4.63 Save $4.63
$50.94
$50.94 - $50.94
$50.94
$46.31
$46.31 - $46.31
$46.31

by Parker Hannifin
LF 3000® Push-In Fittings / Multiple Fittings:3306 90° Multiple Elbow

Package Quantity: 3 Units

Specifications for Variant SKU: 3306 08 06 Parker | 3 |
Brand: LF 3000®
Series: 3306 Series
Shape (Orientation): Multiple 90° Elbow
Material(s): Stainless Steel, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD1 ØD2 G G1 H L/2 N N1 ØT Kg
3306 06 04 6 mm 4 mm 13.5 mm 11 mm 18.5 mm 36 mm 43 mm 11.5 mm 4.2 mm .034 Kg
3306 08 04 8 mm 4 mm 13.5 mm 11 mm 18.5 mm 36.5 mm 43 mm 11.5 mm 4.2 mm .025 Kg
3306 08 06 8 mm 6 mm 13.5 mm 11 mm 18.5 mm 36.5 mm 43 mm 11.5 mm 4.2 mm .022 Kg
3306 10 06 10 mm 6 mm 16 mm 13.5 mm 23 mm 42 mm 52 mm 14.5 mm 4.2 mm .048 Kg
3306 10 08 10 mm 8 mm 16 mm 13.5 mm 23.5 mm 42 mm 52 mm 14.5 mm 4.2 mm .021 Kg
