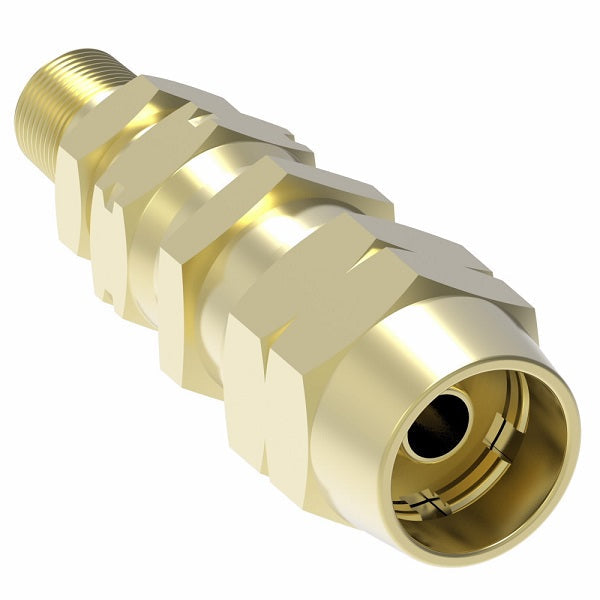

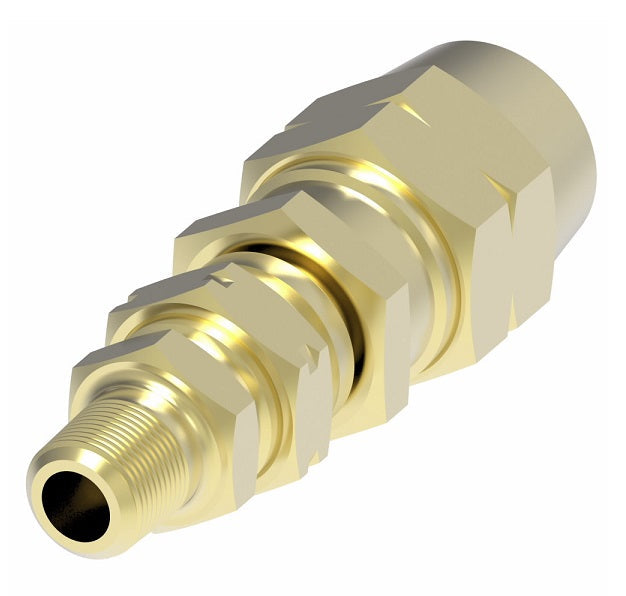

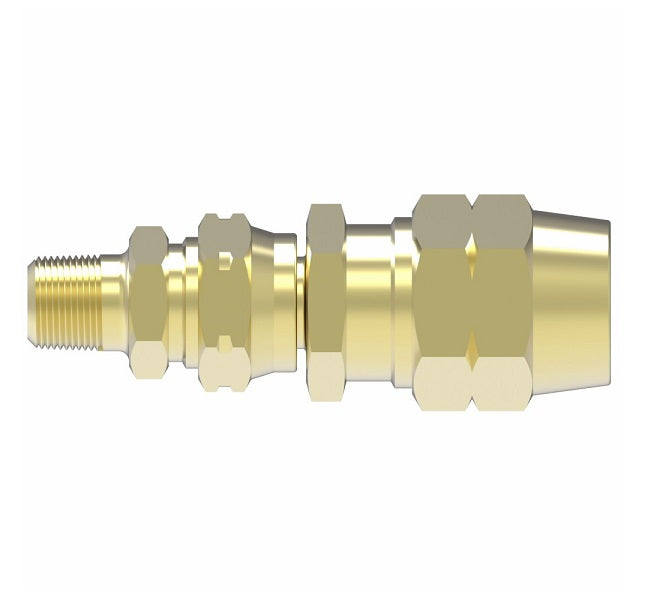

33806B-Y86 Weatherhead by Danfoss | Female Connector with Adapter Field Attachable Fitting | 338 'B' Series DOT | -06 Male NPTF x -06 Reusable Hose End | Brass
33806B-Y86 Weatherhead by Danfoss | Female Connector with Adapter Field Attachable Fitting | 338 'B' Series DOT | -06 Male NPTF x -06 Reusable Hose End | Brass
33806B-Y86 Weatherhead by Danfoss | Female Connector with Adapter Field Attachable Fitting | 338 'B' Series DOT | -06 Male NPTF x -06 Reusable Hose End | Brass
33806B-Y86 Weatherhead by Danfoss | Female Connector with Adapter Field Attachable Fitting | 338 'B' Series DOT | -06 Male NPTF x -06 Reusable Hose End | Brass

33806B-Y86 Weatherhead by Danfoss | Female Connector with Adapter Field Attachable Fitting | 338 'B' Series DOT | -06 Male NPTF x -06 Reusable Hose End | Brass

$26.75 - $26.75
$26.75
$26.75 - $26.75
$26.75

Weatherhead by Danfoss
DOT Field Attachable Fitting - 338 'B' Series - Female UNF - Straight

For air brake hose lines.

Can be used for nearly any air brake line. Easy to assemble. Brass material offers excellent resistance against corrosion.
Specifications for Variant SKU: 33806B-Y86 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPTF, 3/8in Reusable Hose End
Material(s): Brass
Compatible with the following Series: EC038 Series
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number Hose I.D. Pipe Size ABS Thread Size Overall Length Hose Cut-Off Factor
33806B-Y84 3/8" 1/4" 3/4-20 3.33" 1.81
33806B-Y86 3/8" 3/8" 3/4-20 3.33" 1.75
33808B-Y86 1/2" 3/8" 7/8-20 3.30" 1.75

Steel Nut

Note: Drawings may differ from actual parts.
