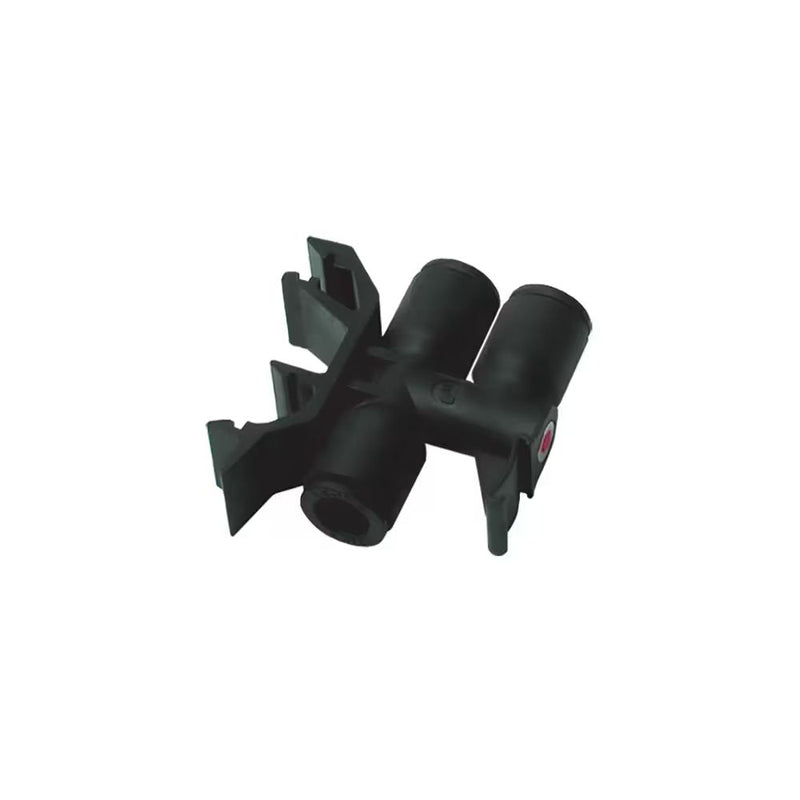

3381 06 00 by Parker | Legris Modular Plug-In Connectors | 6 mm Tube Size | 39.5 mm Length | Straight | Polymer | Pack of 5

Save $12.25

$134.79

$134.79 - $134.79

$134.79

$122.54

$122.54 - $122.54

$122.54

by Parker Hannifin
LF 3000 ® Push-In Fittings / Modular Plug-In Connectors:3381 DIN Rail Connector for 3 Tubes

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 3381 06 00 Parker \| 5 \|
Series:	3381 Series
Shape (Orientation):	Straight
Material(s):	Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 10 bar Working Temperature: -20°C to +80°C
Advantages:	3 types of solutions: in-line, panel-mounted or DIN rail connector Minimized connection space Prevents incorrect assembly Customized multi-connectors upon request
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Panel-mounted: Zinc-Plated Steel, Technical Polymer In-Line: Aluminum, Technical Polymer DIN Rail: Technical Polymer


Part Number	ØD	H	K	L	Kg
3381 04 00	4 mm	36.5 mm	11 mm	39.5 mm	11.5 mm	.013 Kg
3381 06 00	6 mm	36.5 mm	11 mm	39.5 mm	11.5 mm	.007 Kg
3381 08 00	8 mm	46 mm	13 mm	44.5 mm	14.5 mm	.033 Kg

Start pressure test point on the system

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
