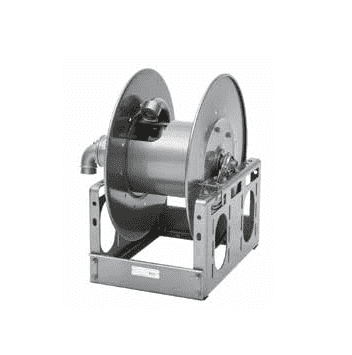

3524-30-31 by Hannay | #35-26 | 3500 Series | Manual Rewind Reel

3524-30-31 by Hannay | #35-26 | 3500 Series | Manual Rewind Reel

$938.00



3500 Manual Rewind Reels To handle 1" through 1-3/4" I.D. hose.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 3524-30-31 Hannay
Series: 3500 Series
Applications:
  • Fuel Dispensing
  • Bulk Transfer
  • Fire Protection
Features:
  • Economical manual rewind reels for long lengths of hose.
  • Choose disc rewind or removable direct crank rewind.
  • Supplied with spring-actuated pin lock.
  • Standard inlet 90 deg. swivel joint 1-1/2" female NPT threads and 2" victaulic groove.
  • Standard outlet flanged riser with 1-1/2" female NPT threads.
  • Pressures to 600 psi (41 bar).
  • Temperatures from -60 deg. F to +175 deg. F (-51 deg. C to +79 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.

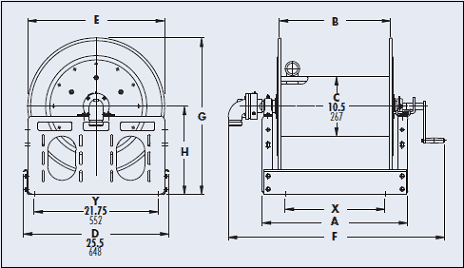

Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
Round Hose Collapsible Hose
I.D. (in) 1" 1-1/2" 1-1/2" 1-3/4"
O.D. (in) 1-9/32" 1-9/16" 1/2" x 1-3/4" 1/2" x 1-3/4" A B E F G H X
3516-25-26 50' length N/A 50' length 50' length 95 lbs. 13" 7.5" 24.75" 26" 27.88" 15.5" 7.75"
3520-25-26 100' length 50' length 100' length 75' length 104 lbs. 17" 11.5" 24.75" 30" 27.88" 15.5" 9"
3524-25-26 150' length 75' length 150' length 100' length 113 lbs. 21" 15.5" 24.75" 34" 27.88" 15.5" 13"
3528-25-26 200' length 100' length 200' length 150' length 123 lbs. 25.5" 20" 24.75" 38.5" 27.88" 15.5" 17.5"
3524-30-31 200' length 100' length 250' length 150' length 124 lbs. 21" 15.5" 28.75" 34" 29.88" 15.5" 13"
3528-30-31 250' length 150' length 300' length 250' length 134 lbs. 25.5" 20" 28.75" 38.5" 29.88" 15.5" 17.5"
3534-30-31 350' length 200' length 450' length 350' length 147 lbs. 31.5" 26" 28.75" 44.5" 29.88" 15.5" 23.5"
3530-33-34 400' length 250' length 450' length 350' length 138 lbs. 27.5" 22" 31.75" 40.5" 32.38" 16.5" 19.5"
Hannay Reels

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
