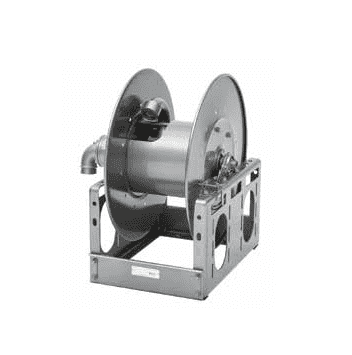

3530-33-34 by Hannay | 3500 Series | Manual Rewind Reel
3530-33-34 by Hannay | 3500 Series | Manual Rewind Reel

3530-33-34 by Hannay | 3500 Series | Manual Rewind Reel

Save $33.70 Save $33.70
$1,130.37
$1,130.37 - $1,130.37
$1,130.37
$1,096.67
$1,096.67 - $1,096.67
$1,096.67



3500 Manual Rewind Reels To handle 1" through 1-3/4" I.D. hose.
Specifications for Variant SKU: 3530-33-34 Hannay
Series: 3500 Series
Applications:
  • Fuel Dispensing
  • Bulk Transfer
  • Fire Protection
Features:
  • Economical manual rewind reels for long lengths of hose.
  • Choose disc rewind or removable direct crank rewind.
  • Supplied with spring-actuated pin lock.
  • Standard inlet 90 deg. swivel joint 1-1/2" female NPT threads and 2" victaulic groove.
  • Standard outlet flanged riser with 1-1/2" female NPT threads.
  • Pressures to 600 psi (41 bar).
  • Temperatures from -60 deg. F to +175 deg. F (-51 deg. C to +79 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.

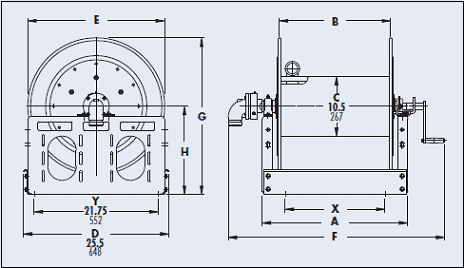

Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
Round Hose Collapsible Hose
I.D. (in) 1" 1-1/2" 1-1/2" 1-3/4"
O.D. (in) 1-9/32" 1-9/16" 1/2" x 1-3/4" 1/2" x 1-3/4" A B E F G H X
3516-25-26 50' length N/A 50' length 50' length 95 lbs. 13" 7.5" 24.75" 26" 27.88" 15.5" 7.75"
3520-25-26 100' length 50' length 100' length 75' length 104 lbs. 17" 11.5" 24.75" 30" 27.88" 15.5" 9"
3524-25-26 150' length 75' length 150' length 100' length 113 lbs. 21" 15.5" 24.75" 34" 27.88" 15.5" 13"
3528-25-26 200' length 100' length 200' length 150' length 123 lbs. 25.5" 20" 24.75" 38.5" 27.88" 15.5" 17.5"
3524-30-31 200' length 100' length 250' length 150' length 124 lbs. 21" 15.5" 28.75" 34" 29.88" 15.5" 13"
3528-30-31 250' length 150' length 300' length 250' length 134 lbs. 25.5" 20" 28.75" 38.5" 29.88" 15.5" 17.5"
3534-30-31 350' length 200' length 450' length 350' length 147 lbs. 31.5" 26" 28.75" 44.5" 29.88" 15.5" 23.5"
3530-33-34 400' length 250' length 450' length 350' length 138 lbs. 27.5" 22" 31.75" 40.5" 32.38" 16.5" 19.5"
