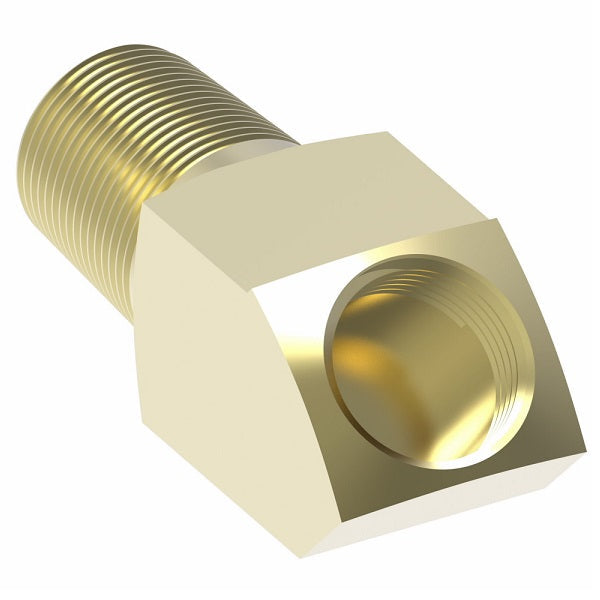

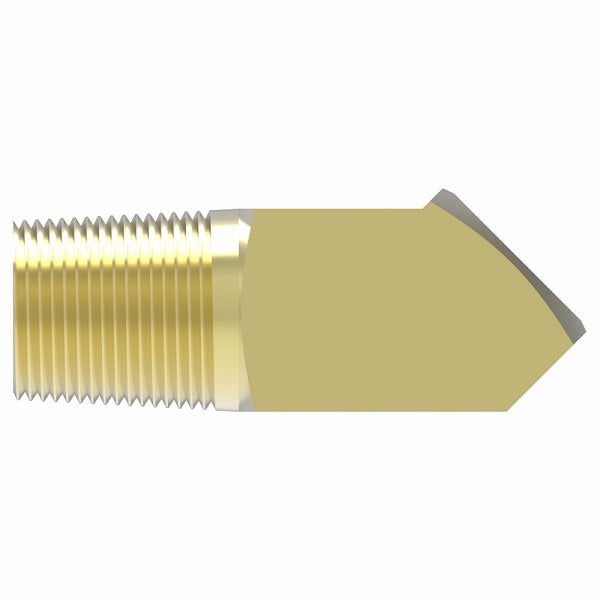

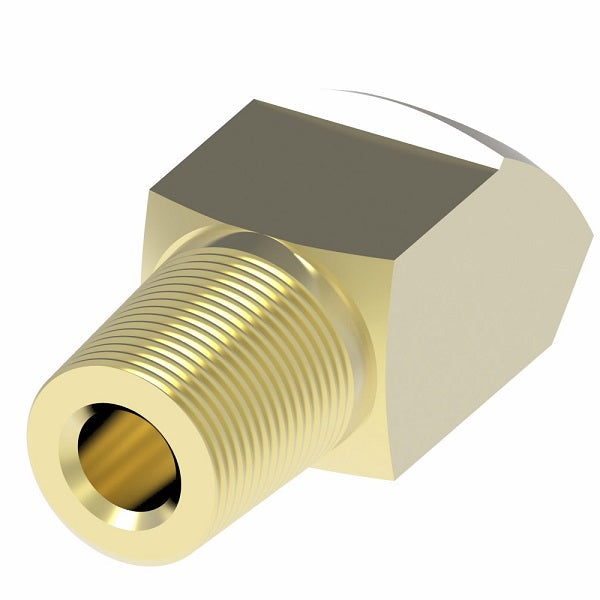

352X6 by Danfoss | Female Inverted Flare/Male Pipe 45° Elbow Adapter | 1/4" Male NPTF x 3/8" Female SAE Inverted Flare | Brass
352X6 by Danfoss | Female Inverted Flare/Male Pipe 45° Elbow Adapter | 1/4" Male NPTF x 3/8" Female SAE Inverted Flare | Brass
352X6 by Danfoss | Female Inverted Flare/Male Pipe 45° Elbow Adapter | 1/4" Male NPTF x 3/8" Female SAE Inverted Flare | Brass
352X6 by Danfoss | Female Inverted Flare/Male Pipe 45° Elbow Adapter | 1/4" Male NPTF x 3/8" Female SAE Inverted Flare | Brass

352X6 by Danfoss | Female Inverted Flare/Male Pipe 45° Elbow Adapter | 1/4" Male NPTF x 3/8" Female SAE Inverted Flare | Brass

$8.69 - $8.69
$8.69
$8.69 - $8.69
$8.69

Aeroquip® by Danfoss
Female Inverted Flare/Male Pipe Adapter
Male NPTF x Female SAE Inverted Flare
45° Elbow
Specifications for Variant SKU: 352X6 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Male NPTF, 3/8in Female Inverted Flare
Material(s): Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • Hydraulic brake, power steering, fuel lines and transmission cooler lines.
Advantages:
  • Very low cost and reusable.
  • Seats and threads are internal and protected.
  • Compact, excellent vibration life.
  • Short nut affords very close tube bends.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 040302
  • Listed by Underwriter's Laboratories (available on special order) for fuel equipment, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-28 3/8-24 7/16-24 1/2-20 5/8-18 11/16-18 3/4-18 7/8-18 1-1/16-16 1-3/16-16 1-5/16-16
Brass
Part Number 		Brass
with Sealant
Part Number 		Tube O.D. Male Pipe Thread Hex
C		 D D1 L M N
352X3 - 3/16" 1/8" 17/32" 0.125" 0.156" 0.88" 0.25" 0.55"
352X4 - 1/4" 1/8" 9/16" 0.188" 0.188" 0.94" 0.27" 0.58"
352X5 - 5/16" 1/8" 5/8" 0.219" 0.203" 1.00" 0.34" 0.56"
352X6 352X6Z 3/8" 1/4" 25/32" 0.281" 0.219" 1.34" 0.41" 0.84"
