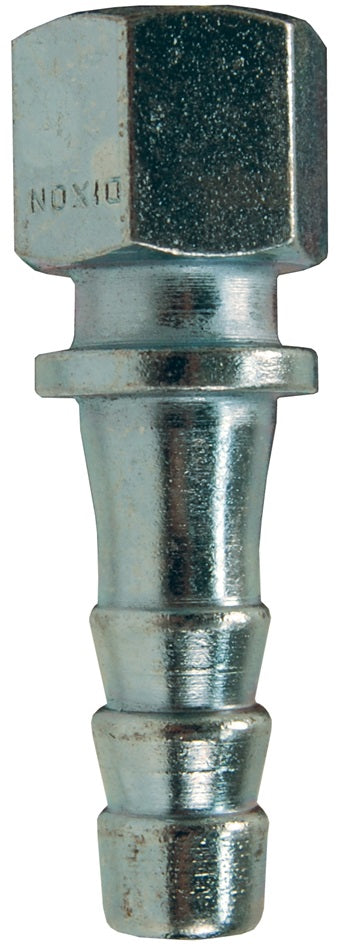

3546 by Dixon Valve | 3500 Nipple | 3/8" Female NPT x 3/8" Hose ID | Zinc Plated Steel

3546 by Dixon Valve | 3500 Nipple | 3/8" Female NPT x 3/8" Hose ID | Zinc Plated Steel

Save $7.90 Save $7.90
$19.75
$19.75 - $19.75
$19.75
$11.85
$11.85 - $11.85
$11.85

Dixon Valve & Coupling
3500 Female NPT Nipple

For air and water service only.
Specifications for Variant SKU: 3546 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 3/8in Female NPT
Material(s): Zink-Plated Steel
Specifications:
  • Working pr essure: 600 PSI at ambient temperature 70°F (21°C).
Material:
  • Zinc Plated Steel
Safety Notes:
  • The constant vibration created by air tools, like air drills and pavement breakers, is destructive to air hose couplings, especially the quick-acting type. To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose.
  • To construct a whip hose, connect one end of a short (3' to 10') air hose to the air tool using a 3500 type steel nipple. Connect the other end of the hose to the air supply using the standard quick-acting coupling. The heat treated 3500 nipple will withstand vibration far better than the standard coupling and provide a safer connection. The whip hose should remain permanently connected to the tool.
Zinc Plated Steel
Part Number		 Hose Size Female NPT
3542 1/4" 1/4"
3545 3/8" 1/4"
3546 3/8" 3/8"
3550 1/2" 3/8"
3552 1/2" 1/2"
3554 3/4" 3/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
