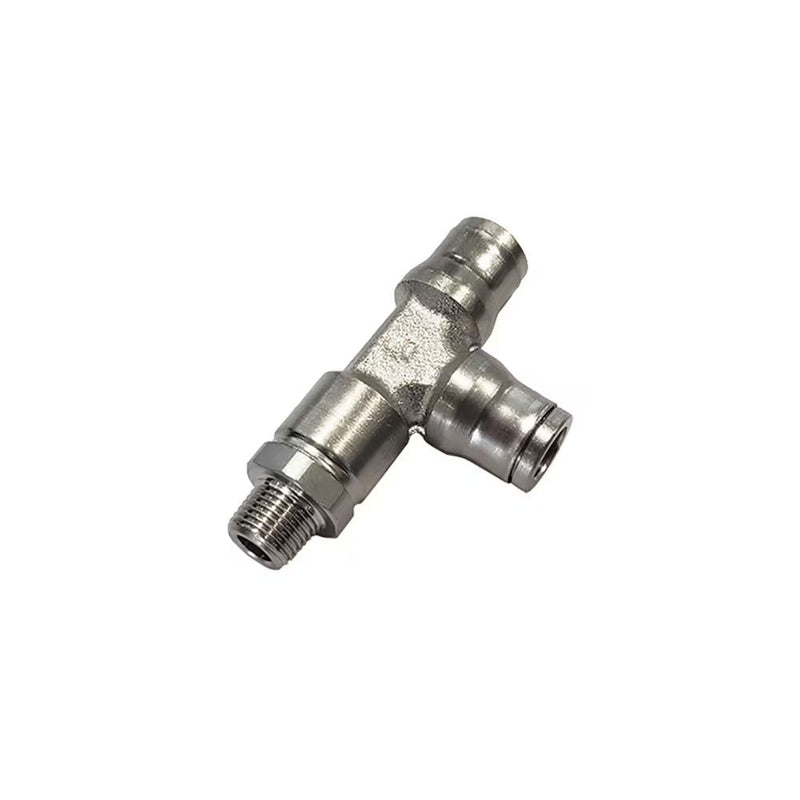

3603 60 18 by Parker | Metal Push-to-Connect Fitting | 3/8" Push-to-Connect x 3/8" Push-to-Connect x 3/8" Male NPT Thread | 18 mm Hex | 2.87" Length | Tee | Nickel-Plated Brass

3603 60 18 by Parker | Metal Push-to-Connect Fitting | 3/8" Push-to-Connect x 3/8" Push-to-Connect x 3/8" Male NPT Thread | 18 mm Hex | 2.87" Length | Tee | Nickel-Plated Brass

Save $26.41 Save $26.41
$66.02
$66.02 - $66.02
$66.02
$39.61
$39.61 - $39.61
$39.61

by Parker Hannifin
LF3600 Metal Push-to-Connect Fittings:3603 - male run tee fractional inch tube to tube to NPT
Specifications for Variant SKU: 3603 60 18 Parker
Brand: LF3600®
Series: 3603 Series
Shape (Orientation): Tee
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Silicone Free, Food Grade, Chemical Resistance, Abrasion Resistance
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone-Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Automation
  • Food Processing
Applications:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
Pressure Range
  • Up to 435 psi (30 bar)
Temperature Range
  • -4° to 302° F (-20° to 150° C)
Vacuum Capability
  • 28" Hg
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Semi-Rigid Nylon
  • Fluoropolymer
  • Stainless Steel (when grooved)
  • Copper (when grooved)
Note:
  • Maximum working pressure and temperature are dependent on the type of tubing used
  • Units with thread sealant do not meet FDA Compliance
Part Number ØD NPT (C) E F G H1 H2 J K L Oz
3603 04 11* 5/32" 1/8" .30" 11 mm .39" .71" .77" .28" .47" .91" .71 Oz
3603 60 14* 3/8" 1/4" .43" 18 mm .67" 1.14" 1.20" .47" .77" 1.48" 2.89 Oz
3603 60 18* 3/8" 3/8" .45" 18 mm .67" 1.14" 1.28" .47" .77" 1.48" 2.82 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
