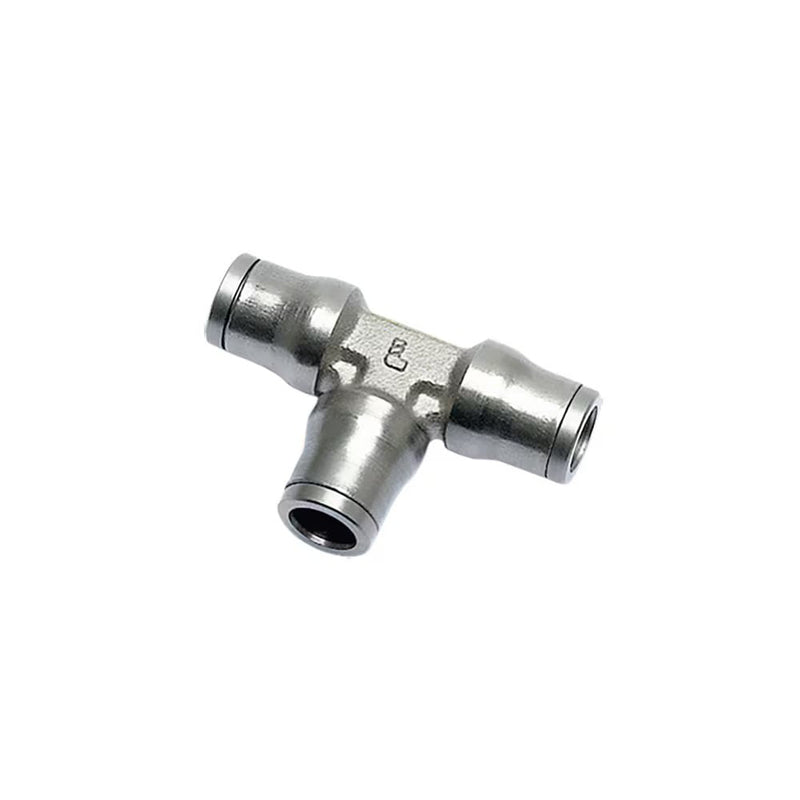

3604 56 00 by Parker | Metal Union Push-to-Connect Fitting | 1/4" Push-to-Connect x 1/4" Push-to-Connect x 1/4" Push-to-Connect | 1.72" Length | Tee | Nickel-Plated Brass | Pack of 10

Save $55.93

$139.82

$139.82 - $139.82

$139.82

$83.89

$83.89 - $83.89

$83.89

by Parker Hannifin
LF3600 Metal Push-to-Connect Fittings:3604 - union tee fractional inch tube to tube to tube

Package Quantity: 10 Units

Specifications for Variant SKU: 3604 56 00 Parker \| 10 \|
Brand:	LF3600®
Series:	3604 Series
Shape (Orientation):	Tee
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Silicone Free, Food Grade, Chemical Resistance, Abrasion Resistance

Product Features:	High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body FKM seal Chemical, corrosion, and abrasion resistance NPT, BSPT, BSPP, and metric threads Silicone-Free
Markets:	Industrial Chemical Life Science Automation Food Processing
Applications:	Food Fluids Harsh Detergents Cleaning In Cold/Hot Water Steam Oils
Pressure Range	Up to 435 psi (30 bar)
Temperature Range	-4° to 302° F (-20° to 150° C)
Vacuum Capability	28" Hg
Compatible Tubing:	Polyethylene Polyurethane 95 Durometer Shore A Semi-Rigid Nylon Fluoropolymer Stainless Steel (when grooved) Copper (when grooved)
Note:	Maximum working pressure and temperature are dependent on the type of tubing used Units with thread sealant do not meet FDA Compliance


Part Number	ØD	G	H	L	Oz
3604 53 00*	1/8"	-	-	-	-
3604 56 00	1/4"	.49"	1.12"	.87"	.81 Oz
3604 60 00	3/8"	.67"	1.48"	1.14"	1.90 Oz
3604 62 00	1/2"	.79"	1.61"	.22"	2.68 Oz
