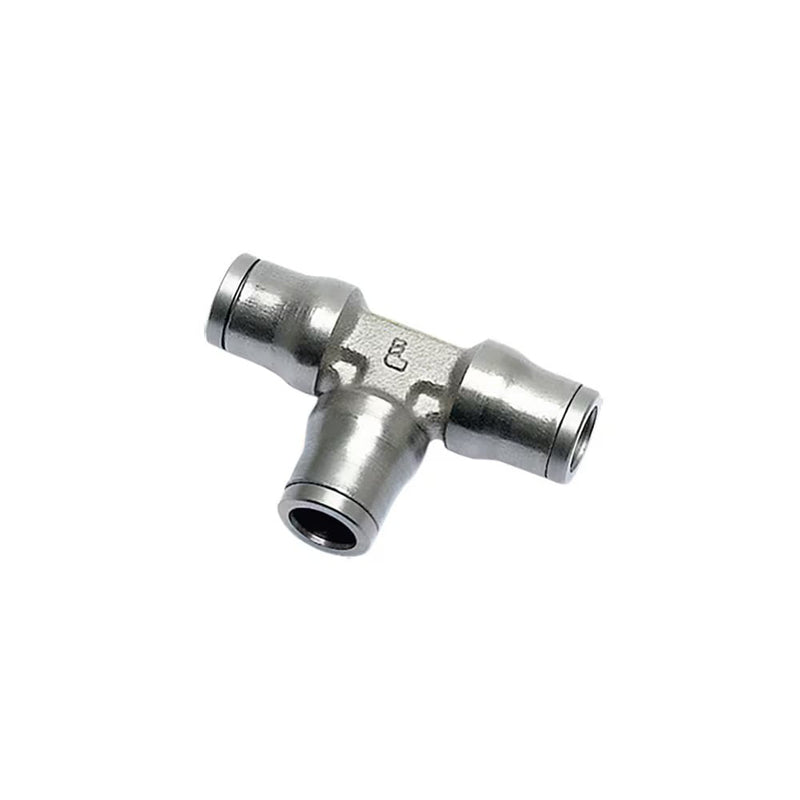

3604 60 00 by Parker | Metal Union Push-to-Connect Fitting | 3/8" Push-to-Connect x 3/8" Push-to-Connect x 3/8" Push-to-Connect | 2.28" Length | Tee | Nickel-Plated Brass

3604 60 00 by Parker | Metal Union Push-to-Connect Fitting | 3/8" Push-to-Connect x 3/8" Push-to-Connect x 3/8" Push-to-Connect | 2.28" Length | Tee | Nickel-Plated Brass | Pack of 10

Save $81.30 Save $81.30
$203.25
$203.25 - $203.25
$203.25
$121.95
$121.95 - $121.95
$121.95

by Parker Hannifin
LF3600 Metal Push-to-Connect Fittings:3604 - union tee fractional inch tube to tube to tube

Package Quantity: 10 Units

Specifications for Variant SKU: 3604 60 00 Parker | 10 |
Brand: LF3600®
Series: 3604 Series
Shape (Orientation): Tee
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Silicone Free, Food Grade, Chemical Resistance, Abrasion Resistance
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone-Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Automation
  • Food Processing
Applications:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
Pressure Range
  • Up to 435 psi (30 bar)
Temperature Range
  • -4° to 302° F (-20° to 150° C)
Vacuum Capability
  • 28" Hg
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Semi-Rigid Nylon
  • Fluoropolymer
  • Stainless Steel (when grooved)
  • Copper (when grooved)
Note:
  • Maximum working pressure and temperature are dependent on the type of tubing used
  • Units with thread sealant do not meet FDA Compliance
Part Number ØD G H L Oz
3604 53 00* 1/8" - - - -
3604 56 00 1/4" .49" 1.12" .87" .81 Oz
3604 60 00 3/8" .67" 1.48" 1.14" 1.90 Oz
3604 62 00 1/2" .79" 1.61" .22" 2.68 Oz
