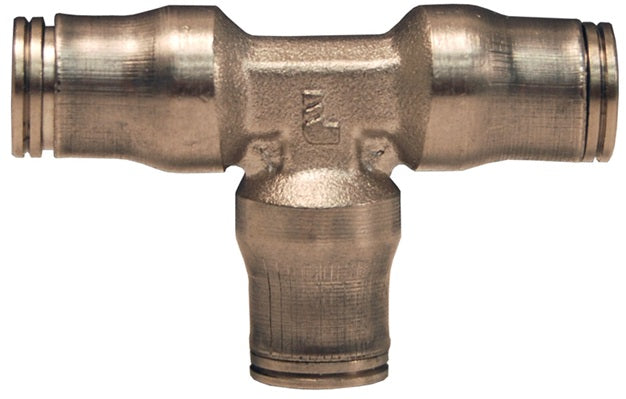

36040400 by Dixon Valve | Legris Push-In Fitting | Union Tee | 5/32" Tube OD | Nickel-Plated Brass

36040400 by Dixon Valve | Legris Push-In Fitting | Union Tee | 5/32" Tube OD | Nickel-Plated Brass

Save $9.54 Save $9.54
$23.85
$23.85 - $23.85
$23.85
$14.31
$14.31 - $14.31
$14.31

Dixon Valve & Coupling
Legris Push-In Fitting | Union Tee | Tube End x Tube End

Push-to-connect forged fittings are nickel-plated and have an FKM seal making them suitable to use with compressed air, grease, lubricant, water

Applications include: food process, coffee machines, in-plant automotive, medical equipment, printing, misting, welding robots.
Specifications for Variant SKU: 36040400 Dixon
Brand: Legris
Series: 3604 Series
Shape (Orientation): Tee
Ends Configuration: 5/32in Push-to-Connect, 5/32in Push-to-Connect, 5/32in Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass
Features:
  • Fittings are plated with a high phosphorous FDA nickel plate allowing them to be used in applications where exposure to harsh environments is present.
  • Full flow
  • Excellent resistance to abrasion and corrosion
  • Silicone free
Construction:
  • Body: High phosphorous FDA nickel plated brass.
  • Back-up washer: High phosphorous FDA nickel plated brass.
  • Collet: High phosphorous FDA nickel plated brass.
  • O-ring: FKM fluoroelastomer conforming to FDA standards.
  • Base: High phosphorous FDA nickel plated brass.
Specifications:
  • Temperature range: -4°F to 302°F (-20°C to 150°C)
  • Pressure range: up to 435 PSI, 290 PSI: 3609, 3699 series
  • Vacuum capability: 28" HG maximum circuit pressure (depends on media, temperature and diameter of tube used)
Approvals:
  • FDA compliant.
Safety Notes:
  • Maximum circuit pressure depends on media, temperature and diameter of tube used
  • Thread sealant is intentionally left off product so the appropriate sealant for the application can be applied.
Part Number Tube O.D.
36040400 5/32"
36045600 1/4"
36046000 3/8"
36046200 1/2"
