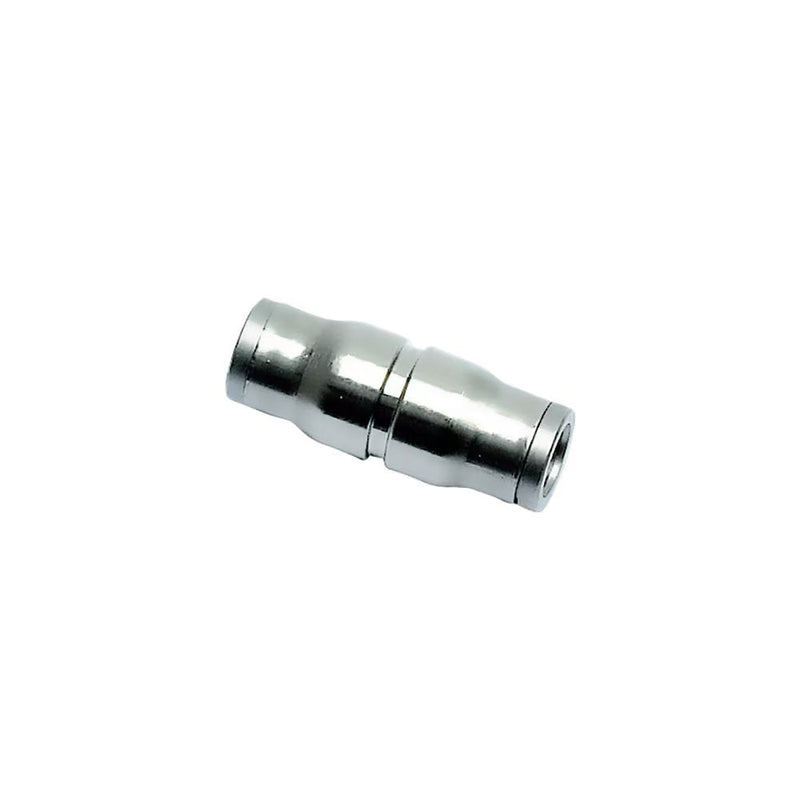

3606 60 00 by Parker | Metal Union Push-to-Connect Fitting | 3/8" Push-to-Connect x 3/8" Push-to-Connect | 1.87" Length | Straight | Nickel-Plated Brass

3606 60 00 by Parker | Metal Union Push-to-Connect Fitting | 3/8" Push-to-Connect x 3/8" Push-to-Connect | 1.87" Length | Straight | Nickel-Plated Brass | Pack of 10

Save $10.62 Save $10.62
$116.81
$116.81 - $116.81
$116.81
$106.19
$106.19 - $106.19
$106.19

by Parker Hannifin
LF3600 Metal Push-to-Connect Fittings:3606 - straight union fractional inch tube to tube

Package Quantity: 10 Units

Specifications for Variant SKU: 3606 60 00 Parker | 10 |
Brand: LF3600®
Series: 3606 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Silicone Free, Food Grade, Chemical Resistance, Abrasion Resistance
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone-Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Automation
  • Food Processing
Applications:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
Pressure Range
  • Up to 435 psi (30 bar)
Temperature Range
  • -4° to 302° F (-20° to 150° C)
Vacuum Capability
  • 28" Hg
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Semi-Rigid Nylon
  • Fluoropolymer
  • Stainless Steel (when grooved)
  • Copper (when grooved)
Note:
  • Maximum working pressure and temperature are dependent on the type of tubing used
  • Units with thread sealant do not meet FDA Compliance
Part Number ØD G L Oz
3606 56 00 1/4" .49" 1.44" .53 oz
3606 60 00 3/8" .67" 1.87" 1.27 oz
3606 62 00 1/2" .79" 1.89" 1.69 oz
