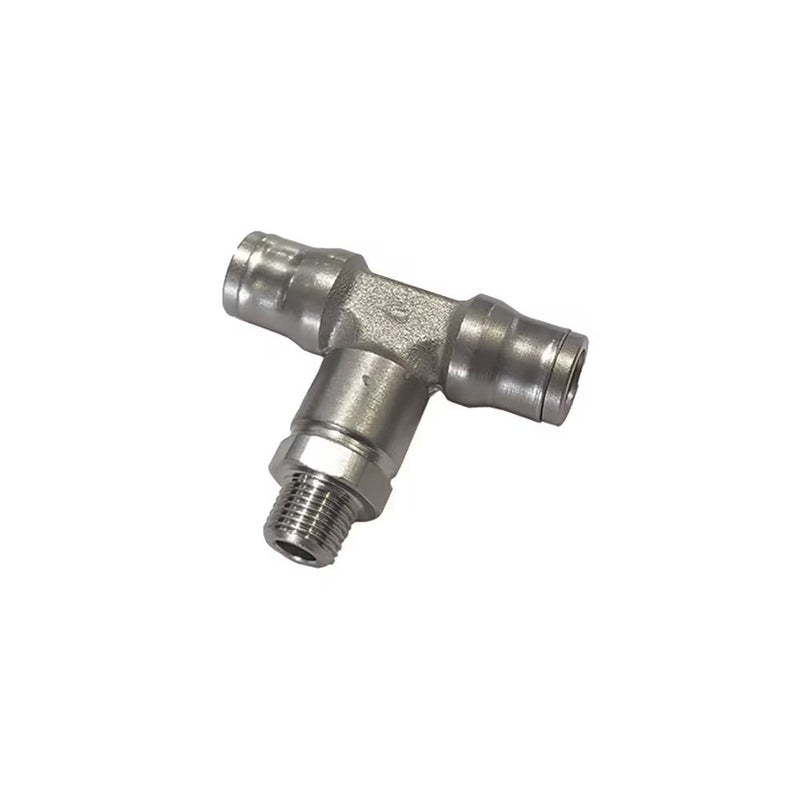

3608 60 14 by Parker | Metal Push-to-Connect Fitting | 1/8" Push-to-Connect x 1/8" Push-to-Connect x 1/8" Male NPT Thread | 18 mm Hex | Tee | Nickel-Plated Brass

3608 60 14 by Parker | Metal Push-to-Connect Fitting | 1/8" Push-to-Connect x 1/8" Push-to-Connect x 1/8" Male NPT Thread | 18 mm Hex | Tee | Nickel-Plated Brass

Save $2.12 Save $2.12
$23.32
$23.32 - $23.32
$23.32
$21.20
$21.20 - $21.20
$21.20

by Parker Hannifin
LF3600 Metal Push-to-Connect Fittings:3608 - male branch tee fractional inch tube to tube to NPT
Specifications for Variant SKU: 3608 60 14 Parker
Brand: LF3600®
Series: 3608 Series
Shape (Orientation): Tee
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Silicone Free, Food Grade, Chemical Resistance, Abrasion Resistance
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone-Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Automation
  • Food Processing
Applications:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
Pressure Range
  • Up to 435 psi (30 bar)
Temperature Range
  • -4° to 302° F (-20° to 150° C)
Vacuum Capability
  • 28" Hg
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Semi-Rigid Nylon
  • Fluoropolymer
  • Stainless Steel (when grooved)
  • Copper (when grooved)
Note:
  • Maximum working pressure and temperature are dependent on the type of tubing used
  • Units with thread sealant do not meet FDA Compliance
Part Number ØD NPT (C) E F G H K L Oz
3608 60 14 1/8" 1/8" .30" 11 mm .34" .85" .47" .59" .71 Oz
3608 62 22 1/2" 1/2" .59" 22 mm .79" 1.89" .94" 1.22" 4.41 Oz
