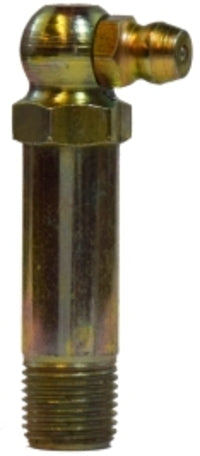

36121 (36-121) Midland Grease Fitting - 90° Angle Ball Check - 1/8"-27 Male NPTF - 1.81" Length - Steel

36121 by Midland | Grease Fitting | Ball Check | 1/8"-27 Male NPTF | 1.81" Length | 90° Elbow | Steel

Save $0.52

$3.36

$3.36 - $3.36

$3.36

$2.84

$2.84 - $2.84

$2.84

Midland Industries
Brass Fitting - Grease Fitting - 90° Angle Ball Check

Inventory @ Manufacturers Warehouse: 150 Units

Quantity

Specifications for Variant SKU: 36121 Midland
Shape (Orientation):	90 Degree
Ends Configuration:	1/8in Male NPTF, Grease Zerk
Material(s):	Steel
Applicable Specs & Approvals:	SAE J-534C

SPECIFICATIONS

SAE Rating:	Meets SAE #J-534C	Conformance:	Exceeds 12HR Salt
Pressure:	Max. 8000 PSI

Crossover Series:
#613	1613	2890	5400	5407


Part Number	Material	Size	A	B	Hex	Approx. Weight (Lbs.)
36120 (36-120)	Steel	1/8"-27 NPTF	0.84"	0.30"	0.437"	0.01
36120SS (36-120SS)	303 Stainless Steel	1/8"-27 NPTF	0.84"	0.29"	0.437"	0.01
36121 (36-121)	Steel	1/8"-27 NPTF	1.81"	1.25"	0.437"	0.01

Dimension Data can change without notice.
