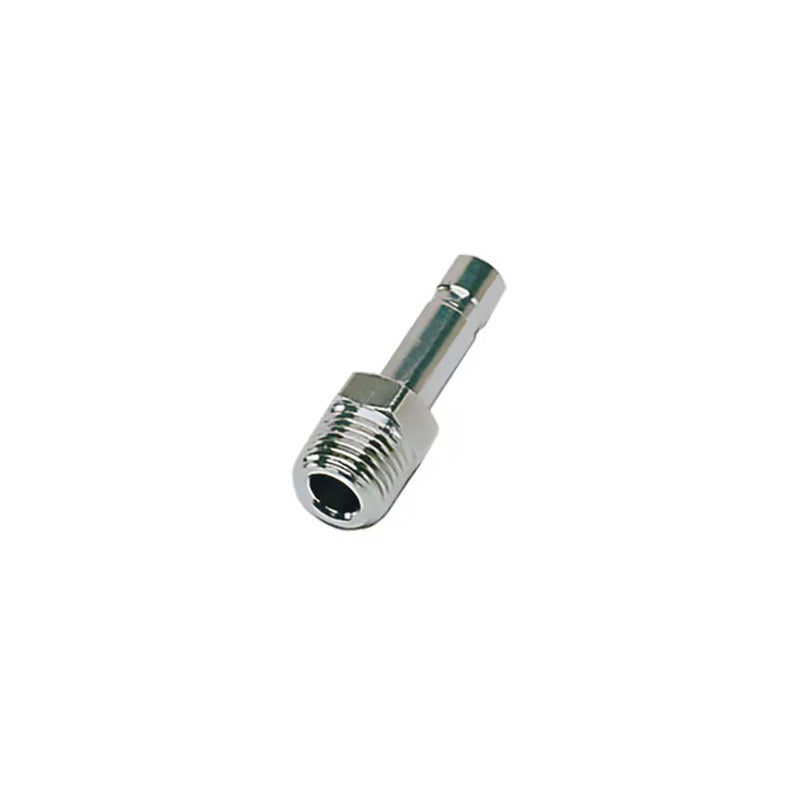

3621 14 21 by Parker | Legris Stud Standpipe | 14 mm Tube Size x 1/2" Male Standpipe BSPT Thread | 22 mm Hex | Straight | Nickel-Plated Brass | Pack of 5

Save $62.43

$156.08

$156.08 - $156.08

$156.08

$93.65

$93.65 - $93.65

$93.65

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3621 Stud Standpipe, Male BSPT Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 3621 14 21 Parker \| 5 \|
Series:	3621 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	FKM
Special Properties:	Food Grade, Silicone Free

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD	C	F	H	H1	Kg
3621 04 10	4 mm	1/8"	10 mm	21 mm	7 mm	.006 Kg
3621 06 10	6 mm	1/8"	10 mm	23.5 mm	6.5 mm	.008 Kg
3621 06 13	6 mm	1/4"	14 mm	23.5 mm	6.5 mm	.016 Kg
3621 08 10	8 mm	1/8"	10 mm	24 mm	6.5 mm	.009 Kg
3621 08 13	8 mm	1/4"	14 mm	21 mm	24 mm	.017 Kg
3621 10 13	10 mm	1/4"	14 mm	22 mm	6.5 mm	.018 Kg
3621 10 17	10 mm	3/8"	17 mm	30 mm	7.5 mm	.022 Kg
3621 12 17	12 mm	3/8"	17 mm	31 mm	7.5 mm	.041 Kg
3621 12 21	12 mm	1/2"	22 mm	31 mm	7.5 mm	.041 Kg
3621 14 21	14 mm	1/2"	22 mm	33 mm	8 mm	.042 Kg
