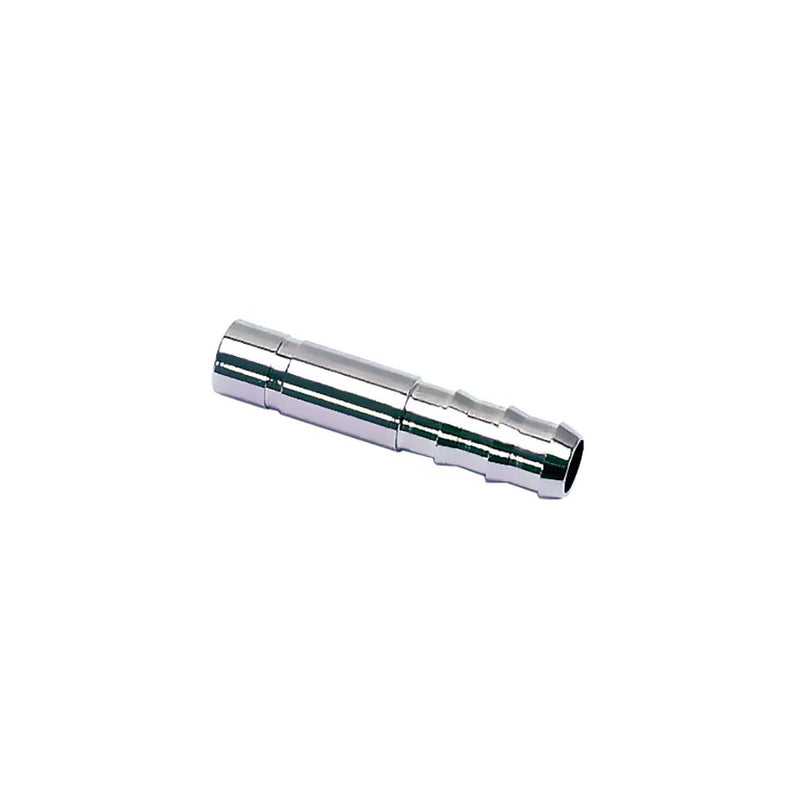

3622 14 62 by Parker | Legris Plug-In Barb | 14 mm Tube x 12.5 mm Tube Size | 57.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $7.28

$80.10

$80.10 - $80.10

$80.10

$72.82

$72.82 - $72.82

$72.82

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Accessories :3622 Plug-In Barb Connector

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3622 14 62 Parker \| 10 \|
Series:	3622 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Special Properties:	Food Grade, Silicone Free

Technical Characteristics:	Suitable Fluids: Compressed air, grease, lubricant, water Working Pressure: Vacuum to 30 bar (20 bar: 3699, 3609, 3639) Working Temperature: -25°C to +150°C
Advantages:	Wide range of working temperatures: up to +150°C Wide range of working pressures: from vacuum up to 30 bar Materials conform to FDA standards Extended chemical compatibility
Regulations:	RoHS REACH PED
Component Materials:	Body: FDA chemical nickel-plated brass Adapter: FDA Chemical nickel-plated brass Collet: FDA Chemical nickel-plated brass Washer: Stainless Steel 316L O-Ring: Fluoroelastomer (FKM)


Part Number	ØD1	ØD2	ØD3	L	L1	L2	Kg
3622 04 53	4 mm	3.2 mm	5 mm	40.5 mm	27 mm	22.5 mm	.003 Kg
3622 04 05	4 mm	5 mm	7 mm	40.5 mm	27 mm	22.5 mm	.005 Kg
3622 06 05	6 mm	5 mm	7 mm	43 mm	27 mm	22.5 mm	.006 Kg
3622 08 56	8 mm	6.3 mm	8.3 mm	42 mm	25 mm	22.5 mm	.008 Kg
3622 08 08	8 mm	8 mm	10 mm	44 mm	27 mm	22.5 mm	.010 Kg
3622 10 56	10 mm	6.3 mm	8.3 mm	47.5 mm	25.5 mm	22.5 mm	.011 Kg
3622 10 08	10 mm	8 mm	10 mm	47.5 mm	25.5 mm	22.5 mm	.011 Kg
3622 12 08	12 mm	8 mm	10 mm	48.5 mm	25.5 mm	22.5 mm	.015 Kg
3622 12 10	12 mm	10 mm	12 mm	48.5 mm	25 mm	22.5 mm	.014 Kg
3622 12 62	12 mm	12.5 mm	14.5 mm	57 mm	34 mm	29.5 mm	.022 Kg
3622 14 62	14 mm	12.5 mm	14.5 mm	57.5 mm	33 mm	29.5 mm	.022 Kg
3622 14 14	14 mm	14 mm	16 mm	59.5 mm	35 mm	29.5 mm	.023 Kg
