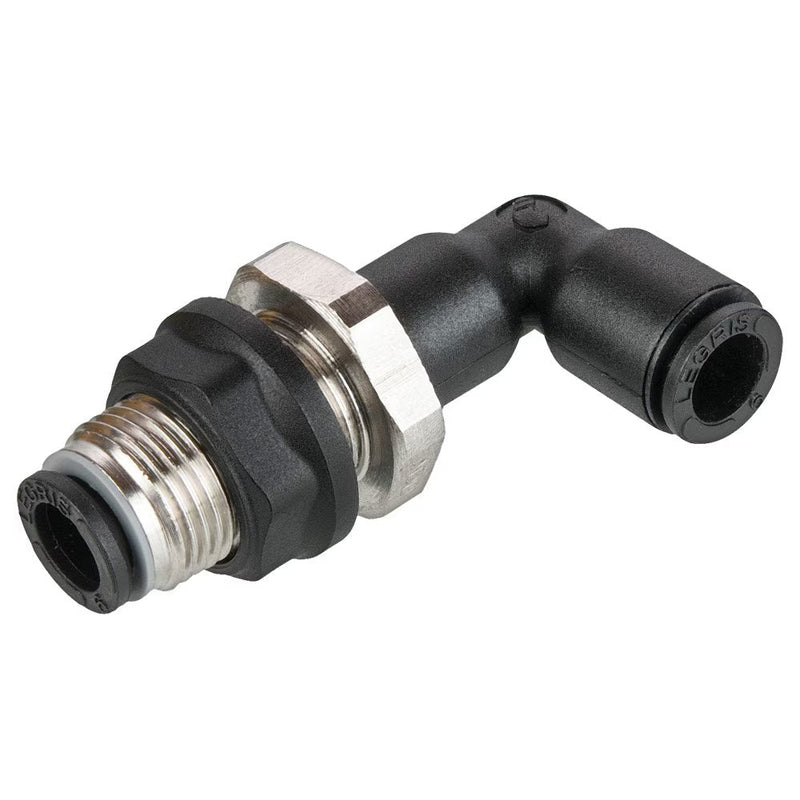

365PLPBH-6M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Bulkhead Union Fittings | 6mm Equal Bulkhead | 15mm Hex (C1) | 15mm Hex (C2) | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

365PLPBH-6M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Bulkhead Union Fittings | 6mm Equal Bulkhead | 15mm Hex (C1) | 15mm Hex (C2) | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $12.22 Save $12.22
$134.45
$134.45 - $134.45
$134.45
$122.23
$122.23 - $122.23
$122.23

by Parker Hannifin
Push-to-Connect Fittings:365PLPBH Equal Bulkhead Elbow

Package Quantity: 10 Units

Specifications for Variant SKU: 365PLPBH-6M Parker | 10 |
Series: 365PLPBH Series
Shape (Orientation): 90° Elbow
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size Hex (C1) Hex (C2) K (Max) H L Bulkhead Thread Bulkhead Hole Diameter
365PLPBH-4M 4 mm 13 mm 13 mm 6.5 mm 21.0 mm 17.0 mm M12 x 1 12 mm
365PLPBH-6M 6 mm 15 mm 15 mm 7.0 mm 24.5 mm 19.5 mm M14 x 1 14 mm
365PLPBH-8M 8 mm 18 mm 18 mm 8.0 mm 31.0 mm 24.0 mm M16 x 1 16 mm
365PLPBH-10M 10 mm 22 mm 22 mm 8.5 mm 36.0 mm 28.0 mm M22 x 1.5 22 mm
365PLPBH-12M 12 mm 26 mm 26 mm 8.5 mm 42.0 mm 33.0 mm M24 x 1.5 24 mm
