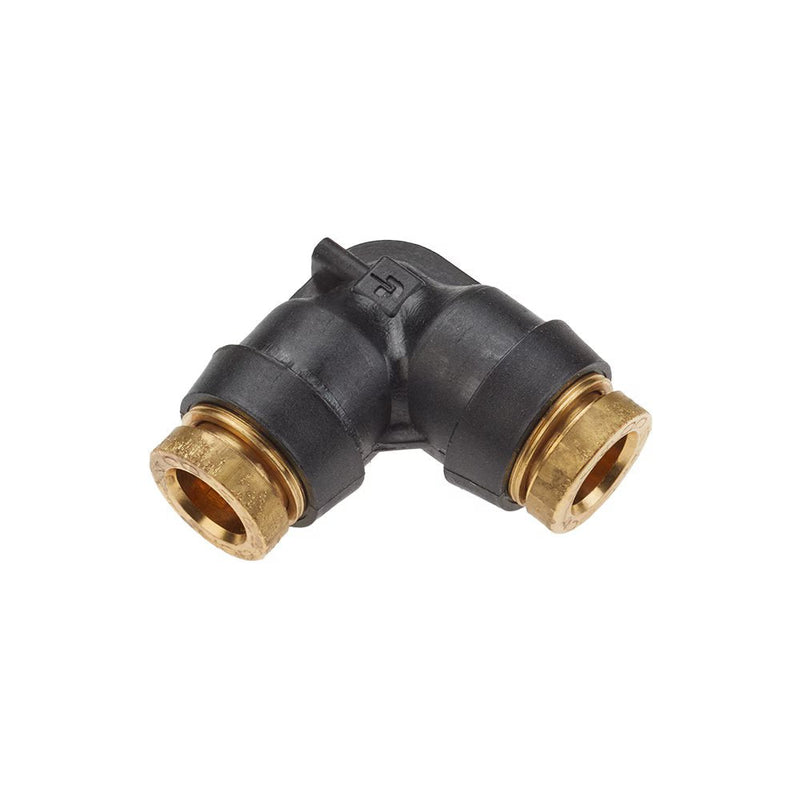

365PTC-4 by Parker | Tube to Tube Fitting | Union | 1/4" Push-to-Connect | .76" Length | 90° Elbow | Composite | Pack of 10

Save $10.20

$124.07

$124.07 - $124.07

$124.07

$113.87

$113.87 - $113.87

$113.87

by Parker Hannifin
PTC & PTCR Composite Fittings:Union Elbow 365PTC

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 365PTC-4 Parker \| 10 \|
Series:	365PTC Series
Shape (Orientation):	90° Elbow
Material(s):	Composite, Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Specification:
Product Features:	Brass Collet HNBR O-ring Stainless Steel Tube Support or Brass Meets D.O.T. FMVSS571.106 Meets SAE J2494-3 Composite Body – Strong, Lightweight, Compact and Impact Resistant Plug-in configurations
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines Cab Controls
Pressure Range:	15 to 145 psi (1.0 to 9.9 bar)
Temperature Range:	+32° to +158° F (0 to +70° C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	L
365PTC-4	1/4"	.76"
365PTC-6	3/8"	1.01"
365PTC-8	1/2"	1.13"
