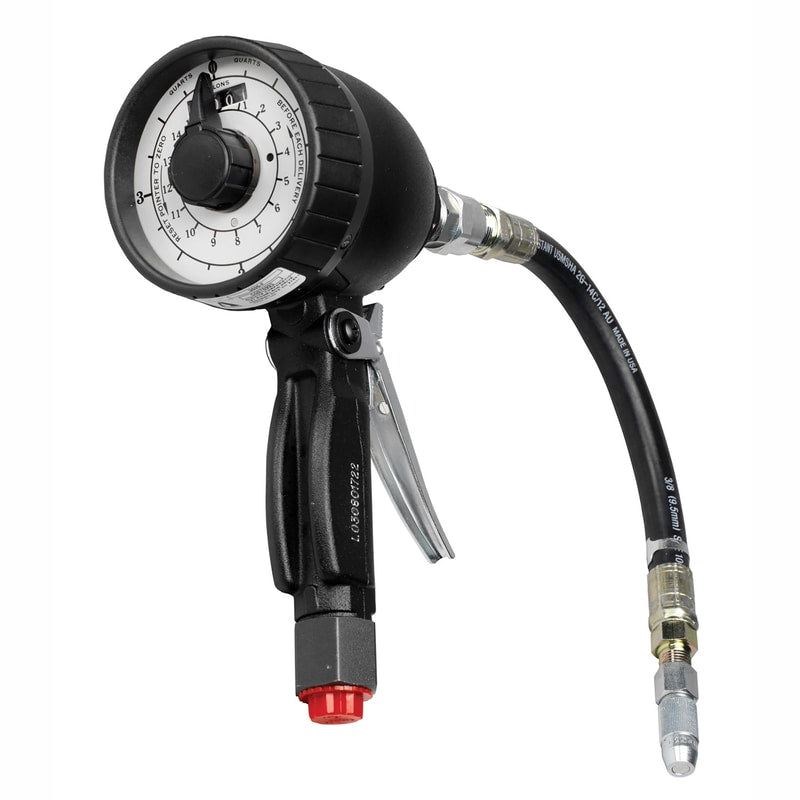

3685-M by Alemite | Mechanical Meter | Dial Register: Quart | Fluid: Oil | Odometer Registers: Liter | Dial Range: Liter (0-10) | Extension: Rigid | 1/2" Female NPT inlet | Max Operating Pressure: 1000 PSI

Save $271.35

$949.73

$949.73 - $949.73

$949.73

$678.38

$678.38 - $678.38

$678.38

PRODUCT DESCRIPTION

Alemite Control Valves and Meters - Mechanical Meters

Specifications for Variant SKU: 3685-M Alemite

Applications:
Alemite Mechanical Meters feature a classic dial design to accurately measure and totalize fluids dispensed.
Features:
Large, easy to read dial face Totalizer keeps lifetime record of fluid dispensed Includes internal filter screen to prevent contaminants from entering the meter 1,000 psi maximum operating pressure Fluid compatibility - Oil, Gear Oil, ATF

Part Number	Dial registers	Fluids	Odometer registers	Dial range	Extension	Non-Drip Tip	Weight
3685-A	Liter	Oil	Liter	Liter (0-10)	Flexible	Automatic	5 Lb.
3685-B	Quart	Oil	Gallon	Quart (0-16)	Rigid	Automatic	5 Lb.
3685-F	Quart	Oil	Gallon	Quart (0-16)	Flexible	Manual	5 Lb.
3685-G	Quart	Oil	Quart	Quart (0-16)	Flexible	Manual	5 Lb.
3685-M	Quart	Oil	Liter	Liter (0-10)	Rigid	Automatic	5 Lb.
3686-B	Quart	ATF	Gallon	Quart (0-16)	Flexible	Automatic	5 Lb.

Alemite | SKF

Alemite products have quietly been a major part of many of the world’s
essential industries. Manufacturing, construction, agriculture, automotive,
pulp and paper, aircraft maintenance, marine and mining industries have
benefitted from the innovations introduced since its founding in 1918.
