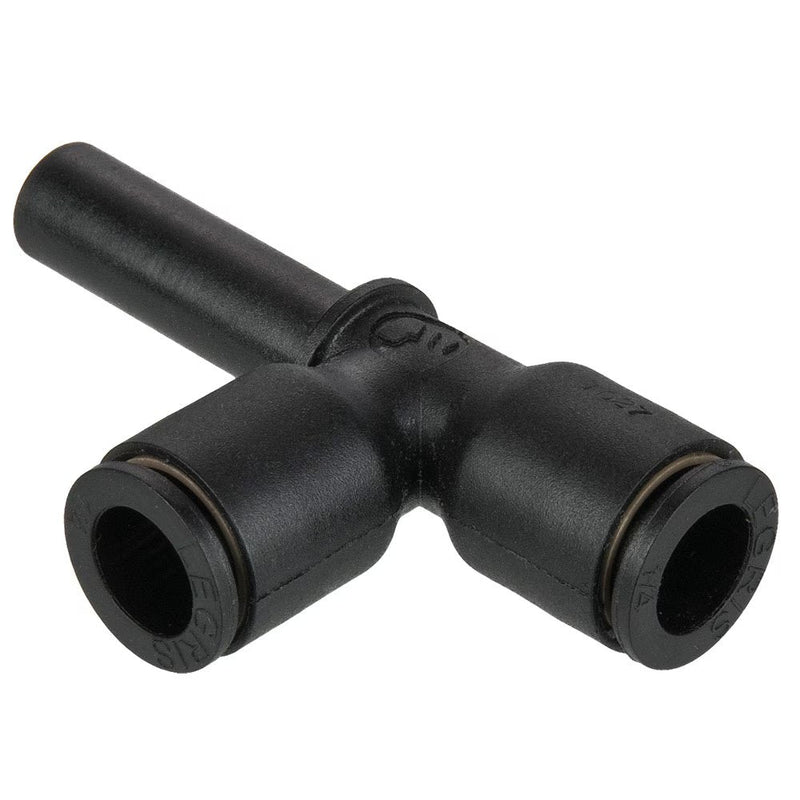

371PLPSP-8 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 1/2" Tube Size | 2.86" Height (H) | Tee | Glass-Reinforced Nylon | Pack of 10

371PLPSP-8 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 1/2" Tube Size | 2.86" Height (H) | Tee | Glass-Reinforced Nylon | Pack of 10

Save $5.94 Save $5.94
$65.34
$65.34 - $65.34
$65.34
$59.40
$59.40 - $59.40
$59.40

by Parker Hannifin
Push-to-Connect Fittings:371PLPSP Plug-In Run Tee

Package Quantity: 10 Units

Specifications for Variant SKU: 371PLPSP-8 Parker | 10 |
Series: 371PLPSP Series
Shape (Orientation): Tee
Material(s): Glass-Reinforced Nylon, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size 1 Tube Size 2 H H1 H2 L
371PLPSP-4 1/4" 1/4" 1.69" .43" .83" .73"
371PLPSP-6 3/8" 3/8" 2.23" .33" .96" 1.00"
371PLPSP-8 1/2" 1/2" 2.86" .51" 1.12" 1.38"
