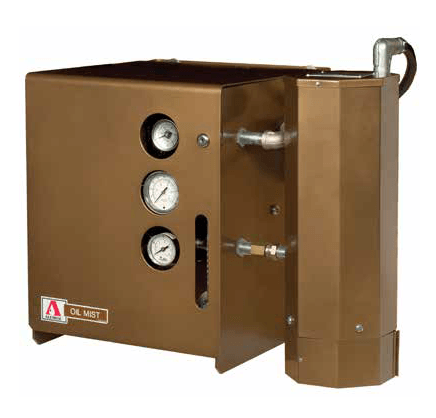

3736-BW6 by Alemite | Oil Mist Generator | 3" Female NPTF | CFM Nominal: 65 | Flow Range: 31-73 CFM | Reservoir Capacity: 3.6 gal/13.6 Liter

Save $212.10

$19,884.02

$19,884.02 - $19,884.02

$19,884.02

$19,671.92

$19,671.92 - $19,671.92

$19,671.92

PRODUCT DESCRIPTION

Alemite Centralized Lubrication - Oil Mist - Oil Mist Generators - 3.6 Gallon

Quantity

Specifications for Variant SKU: 3736-BW6 Alemite

Applications:
Alemite Oil Mist Systems are used to service all types of machine elements that require continuous lubrication, such as rolling element bearings and chain drives. Delivering a continuous, measured stream of clean atomized oil, Alemite Oil Mist Systems have no moving parts for long, reliable life. Alemite Oil Mist Systems use less lubricant, making them a very cost effective option for continuous, automatic lubrication.
Features:
NA

Part Number	CFM Nominal	Reservoir Capacity	Flow Range	Mounting Plate	Oil Heater	Oil Level Switch	Filter/ Regulator	Air Solenoid Valve	Air Heater
3725-A6	9.7	3.6 gal/13.6	3.5-16.5 CFM	NA	115 VAC	Yes	Yes	115 VAC	Accessory (385421-5)
3720-A6	13	3.6 gal/13.6	5.2-21 CFM	NA	115 VAC	Yes	Yes	115 VAC	Accessory (385421-5)
3720-B6	13	3.6 gal/13.6	5.2-21 CFM	NA	230 VAC	Yes	Yes	230 VAC	Accessory (385421-5)
3721-A6	21	3.6 gal/13.6	7.5-33 CFM	NA	115 VAC	Yes	Yes	115 VAC	Accessory (385421-5)
3722-A6	41	3.6 gal/13.6	15-45 CFM	NA	115 VAC	Yes	Yes	115 VAC	Accessory (385421-5)
3722-B6	41	3.6 gal/13.6	15-45 CFM	NA	230 VAC	Yes	Yes	230 VAC	Accessory (385421-5)
3726-A6	65	3.6 gal/13.6	31-73 CFM	NA	115 VAC	Yes	Yes	115 VAC	Accessory (385421-5)
3726-B6	65	3.6 gal/13.6	31-73 CFM	NA	230 VAC	Yes	Yes	230 VAC	Accessory (385421-5)
3730-RW6	13	3.6 gal/13.6	5.2-21 CFM	NA	115 VAC	Yes	Yes	115 VAC	230 VAC
3730-BW6	13	3.6 gal/13.6	5.2-21 CFM	NA	230 VAC	Yes	Yes	230 VAC	230 VAC
3731-RW6	21	3.6 gal/13.6	7.5-33 CFM	NA	115 VAC	Yes	Yes	115 VAC	230 VAC
3731-BW6	21	3.6 gal/13.6	7.5-33 CFM	NA	230 VAC	Yes	Yes	230 VAC	230 VAC
3732-RW6	41	3.6 gal/13.6	15-45 CFM	NA	115 VAC	Yes	Yes	115 VAC	230 VAC
3732-BW6	41	3.6 gal/13.6	15-45 CFM	NA	230 VAC	Yes	Yes	230 VAC	230 VAC
3736-RW6	65	3.6 gal/13.6	31-73 CFM	NA	115 VAC	Yes	Yes	115 VAC	230 VAC
3736-BW6	65	3.6 gal/13.6	31-73 CFM	NA	230 VAC	Yes	Yes	230 VAC	230 VAC

Alemite | SKF

Alemite products have quietly been a major part of many of the world’s
essential industries. Manufacturing, construction, agriculture, automotive,
pulp and paper, aircraft maintenance, marine and mining industries have
benefitted from the innovations introduced since its founding in 1918.
