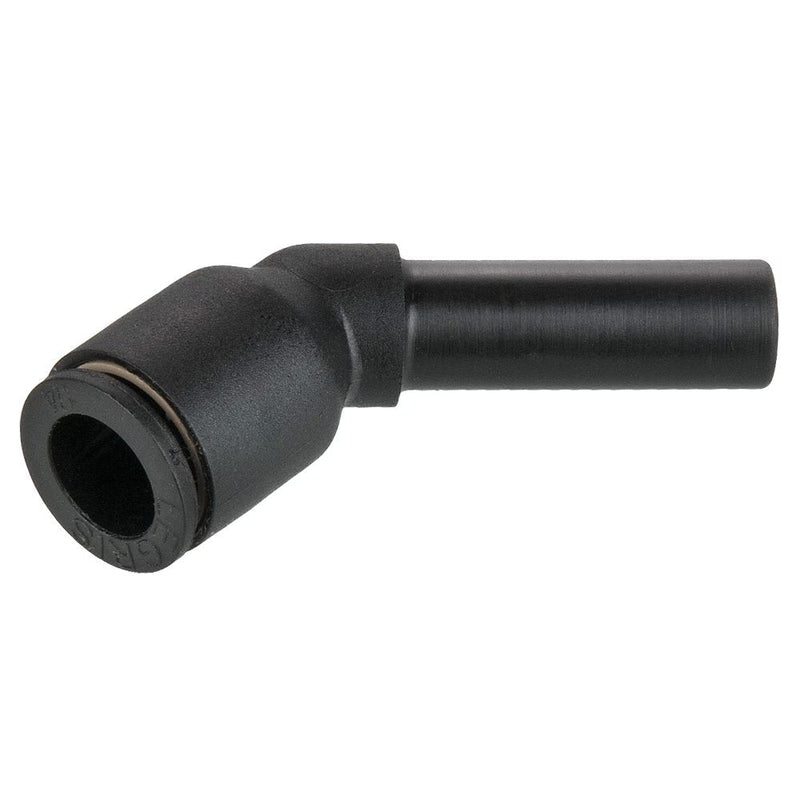

379PLPSP-6 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 3/8" Tube Size | 2.00" Height (H) | 45° Elbow | Glass-Reinforced Nylon | Pack of 10

379PLPSP-6 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Plug-In Fittings | 3/8" Tube Size | 2.00" Height (H) | 45° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $24.27 Save $24.27
$60.67
$60.67 - $60.67
$60.67
$36.40
$36.40 - $36.40
$36.40

by Parker Hannifin
Push-to-Connect Fittings:379PLPSP 45° Plug-In Elbow

Package Quantity: 10 Units

Specifications for Variant SKU: 379PLPSP-6 Parker | 10 |
Series: 379PLPSP Series
Shape (Orientation): 45° Elbow
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size 1 Tube Size 2 H H1 H2 L
379PLPSP-2 1/8" 1/8" 1.14" .59" .69" .47"
379PLPSP-4 1/4" 1/4" 1.44" .71" .87" .57"
379PLPSP-6 3/8" 3/8" 2.00" .96" 1.16" .91"
