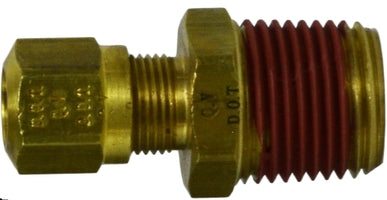

38074 (38-074) Midland DOT Air Brake Fitting (Nylon Tubing) - Male Adapter - 1/4" Tube OD x 1/4" Male NPTF - Brass

38074 by Midland | DOT Air Brake Fitting | Nylon Tubing | 1/4" Tube OD x 1/4" Male NPTF | Adapter | Brass

Save $0.48

$4.35

$4.35 - $4.35

$4.35

$3.87

$3.87 - $3.87

$3.87

Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Nylon Tubing) - Male Adapter - Brass

Easy to assemble (no tube preparation or flaring required.) Built in tube support. Fittings utilize a ribbed sleeve for compression and positive grip. May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve. Insert should be removed for copper tubing use.

Inventory @ Manufacturers Warehouse: 6790 Units

Quantity

Specifications for Variant SKU: 38074 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Tube Compression, 1/4in Male NPTF
Material(s):	Brass
Applicable Specs & Approvals:	D.O.T. FMVSS 571.106, Applicable SAE Standards

SPECIFICATIONS

Applications:	Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.	Used With:	NT Nylon Tubing - SAE J844 Type A and B.
SAE Rating:	SAE# 100102BA	Conformance:	Meets specifications and standards of SAE and DOT FMVSS 571,106.
Vibration:	Fair Resistance.	Temperature Range:	-40°F to +200°F (-40°C to +93°C)
Tolerance:	+/- .02 on all dimensions	Pressure:	Maximum operating pressure of 150 PSI

Tube OD	1/4"	3/8"	1/2"	5/8"	3/4"
Thread Size - B	7/16-24	17/32-24	11/16-20	13/16-18	1-18

Assembly Instructions:
1) Cut tubing to desired length. 2) Slide nut and then sleeve on tubing. Threaded end of nut "A" must face toward fitting body. 3) Insert tubing into the preassembled fitting. Be sure tubing is bottomed in fitting. 4) Tighten nut to required torque as indicated on chart. Disassembling: Remove nut and pull tubing out of fitting body. Insert will remain in tubing. Reassembly: Push tubing and insert into fitting body until it bottoms. Thread nut onto fitting body.

Crossover Series:
68NA	NT68VS	68NAB	68NTA	1468

Part Number	Tube OD x Male NPTF	Approx. Weight (Lbs.)
38072 (38-072)	1/4" x 1/16"	0.05
38073 (38-073)	1/4" x 1/8"	0.05
38074 (38-074)	1/4" x 1/4"	0.06
38075 (38-075)	1/4" x 3/8"	0.08
38076 (38-076)	3/8" x 1/8"	0.07
38077 (38-077)	3/8" x 1/4"	0.08
38078 (38-078)	3/8" x 3/8"	0.10
38079 (38-079)	3/8" x 1/2"	0.14
38080 (38-080)	1/2" x 1/4"	0.13
38081 (38-081)	1/2" x 3/8"	0.14
38082 (38-082)	1/2" x 1/2"	0.18
38087 (38-087)	1/2" x 3/4"	0.23
38083 (38-083)	5/8" x 3/8"	0.17
38084 (38-084)	5/8" x 1/2"	0.21
38088 (38-088)	5/8" x 3/4"	0.25
38085 (38-085)	3/4" x 1/2"	0.28
38086	3/4" x 3/4"	0.30

Dimension data can change without notice.
