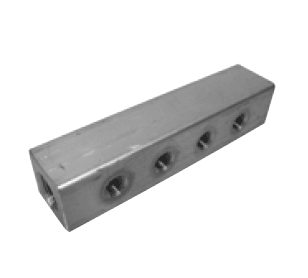

381174-2 by Alemite | Manifold Block | 5" Length w/ 1-1/8" Square | 8 3/8" Female NPT End Ports | (180°) | Aluminum

Save $1.19

$111.38

$111.38 - $111.38

$111.38

$110.19

$110.19 - $110.19

$110.19

PRODUCT DESCRIPTION

Alemite Centralized Lubrication - Oil Mist - Accessories

Quantity

Specifications for Variant SKU: 381174-2 Alemite

Applications:
Alemite Oil Mist Systems are used to service all types of machine elements that require continuous lubrication, such as rolling element bearings and chain drives. Delivering a continuous, measured stream of clean atomized oil, Alemite Oil Mist Systems have no moving parts for long, reliable life. Alemite Oil Mist Systems use less lubricant, making them a very cost effective option for continuous, automatic lubrication.
Features:
Manifold Blocks - Simplify system piping installation, 2 clamps included 3/8" NPT(f) end ports, 1/8" NPT(f) outlets

Part Number	Description
381192-2	2 ports
381193-2	3 ports
381173-2	4 ports (180°)
381190-2	8 ports (90°)
381174-2	8 ports (180°)
48925	3/8" plug for end port
385662-A1	Clear acrylic sight glass provides visual check of condensed oil. Brass "snap" valve permits quick draining and closes when released. Used on both manifold blocks and bearing housing drains Equipped with 1/2" NPT (m) adapter
388034	Allows filling under pressure, reduces spillage, keeps dirt out of reservoir. Manual pump (7181-4) holds 3.7 gallons of oil. 7' hose assembly (380696) comes with filter and loader
