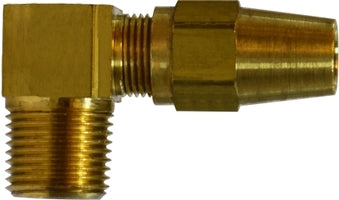

38246 by Midland | DOT Air Brake Fitting | Copper Tubing | 5/8" Tube OD x 1/2" Male NPTF | 90° Elbow | Brass

Save $3.10 Save $3.10
Original price $19.95
Original price $19.95 - Original price $19.95
Original price $19.95
Current price $16.85
$16.85 - $16.85
Current price $16.85

Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Copper Tubing) - Male 90° Elbow - Brass

Specifications for Variant SKU: 38246 Midland
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Tube Compression, 1/2in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: Applicable D.O.T. Requirements, D.O.T. FMVSS 49 571.106, Applicable SAE Standards

SPECIFICATIONS

SAE Rating: SAE# 120202BA Tolerance: +/- .02 on all dimensions
Crossover Series:
69AB AB69 269AB 1369
Part Number Tube OD x Male NPTF A B Approx. Weight
(Lbs.)
38235
(38-235)
1/4" x 1/8" 0.64" 0.76" 0.08
38236
(38-236)
1/4" x 1/4" 0.69" 0.88" 0.10
38237
(38-237)
1/4" x 3/8" 0.73" 0.86" 0.14
38239
(38-239)
3/8" x 1/4" 0.80" 0.93" 0.12
38240
(38-240)
3/8" x 3/8" 0.83" 0.90" 0.16
38241 3/8" x 1/2" - - 0.22
38243
(38-243)
1/2" x 3/8" 0.92" 0.98" 0.22
38244
(38-244)
1/2" x 1/2" 1.04" 1.19" 0.30
38246
(38-246)
5/8" x 1/2" 1.10" 1.25" 0.36

Dimension data can change without notice.
