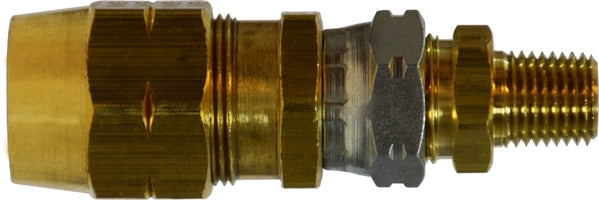

38364 (38-364) Midland DOT Air Brake Reusable Hose Fitting - Male Connector - 1/2" Hose ID x 3/8" Male Pipe - Brass

38364 by Midland | DOT Air Brake Reusable Hose Fitting | Connector | 1/2" Hose ID x 3/8" Male Pipe | Brass

Save $4.53 Save $4.53
$40.76
$40.76 - $40.76
$40.76
$36.23
$36.23 - $36.23
$36.23

Midland Industries
Brass Fitting - D.O.T. Air Brake Reusable Hose Fitting - Male Connector - Brass

Inventory @ Manufacturers Warehouse: 541 Units
Specifications for Variant SKU: 38364 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Reusable Hose End, 3/8in Male NPT
Material(s): Brass
Applicable Specs & Approvals: Applicable D.O.T. Requirements, Applicable SAE Standards

SPECIFICATIONS

Applications: Air Brake hose connections. Advantages: Can be used for nearly any brake line. Easy to assemble with a good selection of hose end configurations. Brass material offers excellent resistance against corrosion.
SAE Rating: N/A Conformance: Meets SAE & DOT specifications (FMVCS 10 GAL)
Pressure: Determined by maximum working pressure for hose size. Up to 125 psi Temperature Range: -40°F to + 120°F ( -40°C to +48°C )
Tolerance: +/- .02 on all dimensions.
Assembly Instructions:
  • 1) Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward fitting.
  • 2) Push hose into fitting until it bottoms.
  • 3) Screw nut until contact is made with body hex.
  • NOTE: When reassembling fitting, body and nut should be inspected. Only reuse if in proper condition. Sleeves should never be reused.
Crossover Series:
68HEA HE68S #68ABS 09155 3380B-Y8 387
Part Number Hose I.D. x Female ABS Approx. Weight
(Lbs.)
38363
(38-363)		 3/8" x 1/4" 0.38
38364
(38-364)		 1/2" x 3/8" 0.46

Dimension Data can change without notice.
