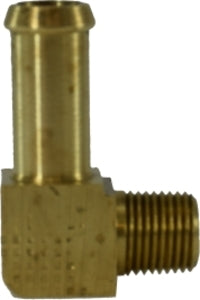

38866 (38-866) Midland Fuel Hose Barb - 90° Male Elbow - 3/8" Hose ID x 1/8" Male Pipe - Brass

38866 by Midland | Fuel Hose Barb | 3/8" Hose ID x 1/8" Male Pipe | 90° Elbow | Brass

Save $1.48 Save $1.48
$13.31
$13.31 - $13.31
$13.31
$11.83
$11.83 - $11.83
$11.83

Midland Industries
Brass Fitting - Fuel Hose Barb - 90° Male Elbow

Inventory @ Manufacturers Warehouse: 1216 Units
Specifications for Variant SKU: 38866 Midland
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Hose Barb, 1/8in Male NPT
Material(s): Brass

SPECIFICATIONS

Applications: Low pressure air, fuel and oil applications. Generally used for automotive, light truck, and small engine fuel lines. Used With: Use with fuel hose SAE 30R7 & SAE 30R9.
SAE Rating: N/A Conformance: N/A
Vibration: N/A Temperature Range: N/A
Tolerance: N/A Lead Free: N/A
Advantages: Easy to assemble, just push the fitting into the hose & clamp. Good selection of configurations at reasonable cost.
Crossover Series:
159E
Part Number Hose ID Male Pipe IND #
38860
(38-860) 		1/4" 1/8" 1582
38862
(38-862) 		5/16" 1/8" 1556
38864
(38-864) 		5/16" 1/4" 1557
38866
(38-866) 		3/8" 1/8" 1572
38868
(38-868) 		3/8" 1/4" 1571
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
