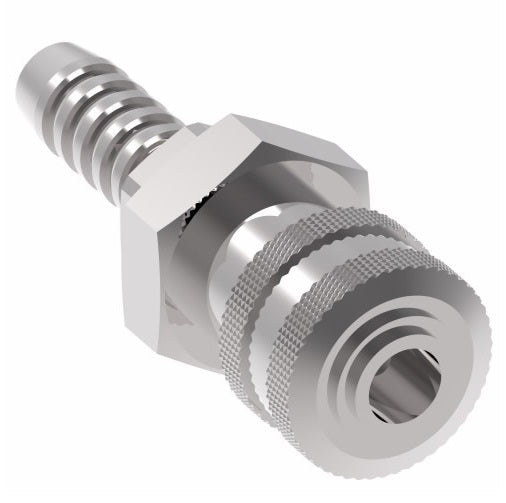

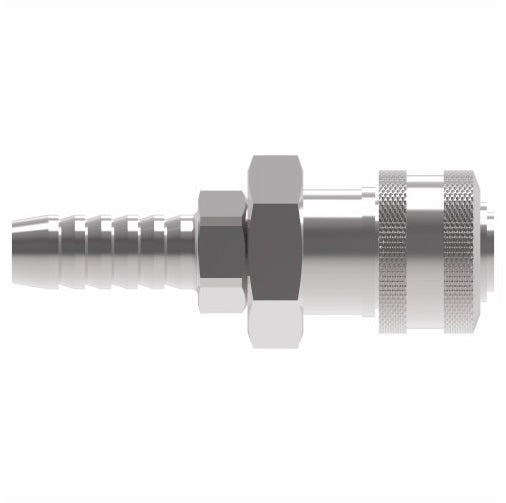

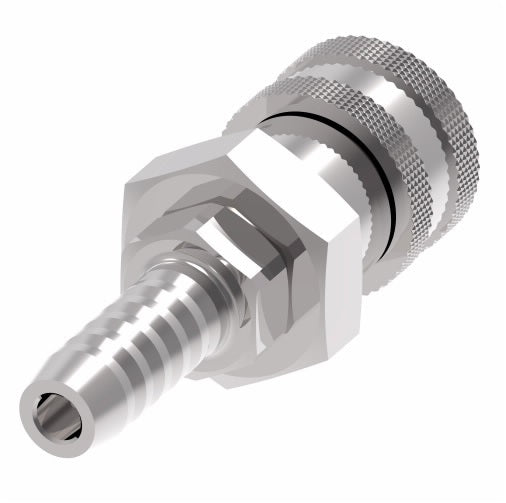

3R27 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | Hose Barb End | 1/2" Hose ID x 3/8" Body Size | Socket | Buna-N Seal | Steel
3R27 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | Hose Barb End | 1/2" Hose ID x 3/8" Body Size | Socket | Buna-N Seal | Steel
3R27 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | Hose Barb End | 1/2" Hose ID x 3/8" Body Size | Socket | Buna-N Seal | Steel
3R27 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | Hose Barb End | 1/2" Hose ID x 3/8" Body Size | Socket | Buna-N Seal | Steel

3R27 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 3RL Series | Hose Barb End | 1/2" Hose ID x 3/8" Body Size | Socket | Buna-N Seal | Steel

$36.37 - $36.37
$36.37
$36.37 - $36.37
$36.37

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 3RL Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 2RL/3RL ring lock series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.
Specifications for Variant SKU: 3R27 Danfoss
Brand: Hansen
Series: 3RL Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • High Flow capacity.
  • Push to connect with a ring lock sleeve.
  • Ring lock design prevents accidental disconnection.
  • To disconnect rotate sleeve 20 degrees.
Applications & Markets:
  • Shipyards
  • General Pneumatics
  • Mining
  • Marine
Materials:
  • Standard body material: Trivalent Plated Steel
  • Standard seal material: Buna-N
Series Coupling Size Max. Operating Pressure Min. Burst Pressure Rated Flow
2RL 1/4" 20 bar 300 psi 80 bar 1,200 psi 1,350 lpm 48 scfm
3RL 3/8" 20 bar 300 psi 80 bar 1,200 psi 2,250 lpm 80 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
3RL Series | Socket
Part Number Coupling Type Body Size Hose ID End Type Figure Dimensions
A B
3R17 Socket/Female 3/8" 1/4" Hose Barb 1 2.85"
(72.4mm)		 1.31"
(33.3mm)
3R195 Socket/Female 3/8" 5/16" Hose Barb 1 2.85"
(72.4mm)		 1.31"
(33.3mm)
3R22 Socket/Female 3/8" 3/8" Hose Barb 1 2.89"
(73.4mm)		 1.31"
(33.3mm)
3R27 Socket/Female 3/8" 1/2" Hose Barb 1 2.81"
(71.4mm)		 1.31"
(33.3mm)
3R32 Socket/Female 3/8" 3/4" Hose Barb 1 3.66"
(93.0mm)		 1.31"
(33.3mm)
3RL Series | Plugs
Part Number Coupling Type Body Size Hose ID End Type Figure Dimensions
C D
3L17 Plug/Male 3/8" 1/4" Hose Barb 2 2.16"
(54.9mm)		 0.63"
(16.0mm)
3L195 Plug/Male 3/8" 5/16" Hose Barb 2 2.16"
(54.9mm)		 0.63"
(16.0mm)
3L195G* Plug/Male 3/8" 5/16" Hose Barb 2 3.11"
(79.0mm)		 0.98"
(24.9mm)
3L22 Plug/Male 3/8" 3/8" Hose Barb 2 2.16"
(54.9mm)		 0.75"
(19.1mm)
3L22G* Plug/Male 3/8" 3/8" Hose Barb 2 3.11"
(79.0mm)		 0.98"
(24.9mm)
3L27 Plug/Male 3/8" 1/2" Hose Barb 2 2.16"
(54.9mm)		 0.81"
(20.6mm)
3L27G* Plug/Male 3/8" 1/2" Hose Barb 2 3.11"
(79.0mm)		 0.98"
(24.9mm)
3L32 Plug/Male 3/8" 3/4" Hose Barb 2 3.13"
(79.5mm)		 1.00"
(25.4mm)
3L32G* Plug/Male 3/8" 3/4" Hose Barb 2 3.96"
(100.6mm)		 0.98"
(24.9mm)

* With Bleeder Ball Check - Reduces Hose Whip
