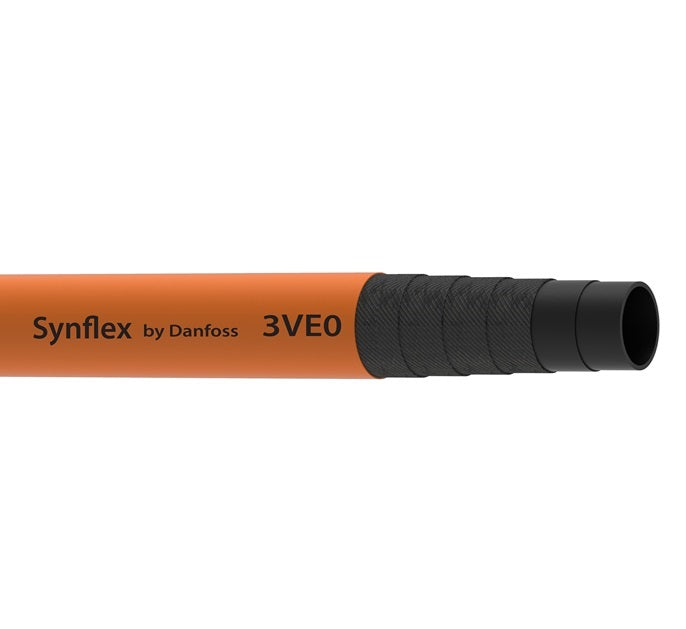

3VE0-03-250BX Synflex by Danfoss | Very High Pressure Non-Conductive Thermoplastic Hydraulic Hose (SAE J517) | -03 Hose Size | 0.19" ID | 250ft Box

3VE0-03-250BX Synflex by Danfoss | Very High Pressure Non-Conductive Thermoplastic Hydraulic Hose (SAE J517) | -03 Hose Size | 0.19" ID | 250ft Box

$2,994.40 - $2,994.40
$2,994.40
$2,994.40 - $2,994.40
$2,994.40

Synflex by Danfoss
3VE0 Series | Very High Pressure Non-Conductive Thermoplastic Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Package Quantity: 250 ft

Specifications for Variant SKU: 3VE0-03-250BX Danfoss | 250 |
Brand: Aeroquip
Series: 3VE0 Series
Hose Color(s): Orange
Dash Size: -03
Internal Diameter: 0.19in
Outer Diameter: 0.52in
Tubing Construction: Nylon
Cover Construction: Polyurethane
Applicable Specs & Approvals: SAE J517
Hose Properties:
Application: General hydraulic systems that may contact high voltage sources.
Rescue equipment and tools.
Mobile machinery.
Aerial equipment.		 SAE Rating: SAE J517
Other Ratings: N/A Tube: Nylon-Lined
Reinforcement: Spiral, High Tensile Aramid Fiber Cover: Black, Perforated Polyurethane
Temperature Range: -40°F to +150°F
(-40°C to +66°C)		 Features: SAE J517 non-conductive hose construction.
Less than 50 micro-amperes leakage when subjected to 75,000 volts/ft for five minutes.
Compact size.
Low elongation.
Part Number Hose Size Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight Length
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft Meter Foot
3VE0-03 -03 5 4,8mm 0.19" 13,2mm 0.52" 689 bar 10,000 psi 2,758 bar 40,000 psi 38,0mm 1.50" 0,11 kg/m 0.08 lbs/ft 76,2m 250ft
3VE0-04 -04 6 6,4mm 0.25" 15,1mm 0.60" 689 bar 10,000 psi 2,758 bar 40,000 psi 64,0mm 2.50" 0,16 kg/m 0.11 lbs/ft 76,2m 250ft
3VE0-06 -06 10 9,5mm 0.38" 19,8mm 0.78" 551 bar 8,000 psi 2,206 bar 32,000 psi 76,0mm 3.00" 0,23 kg/m 0.16 lbs/ft 76,2m 250ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
