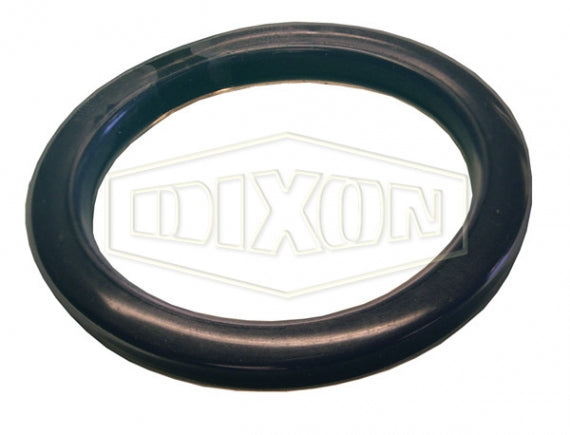

400-G-TEV by Dixon Valve | Cam & Groove Encapsulated Gasket | 4" Size | PTFE (FEP) Encapsulated FKM

400-G-TEV by Dixon Valve | Cam & Groove Encapsulated Gasket | 4" Size | PTFE (FEP) Encapsulated FKM

Save $55.77 Save $55.77
$139.42
$139.42 - $139.42
$139.42
$83.65
$83.65 - $83.65
$83.65

Dixon Valve
Cam & Groove Encapsulated Gasket
Specifications for Variant SKU: 400-G-TEV Dixon
Seal Material(s): PTFE & Viton/FKM
Materials:
  • Encapsulated gasket pressure ratings are reduced to 125 PSI for 3/4" - 4" at ambient temperature 70°F (21°C)
  • PTFE encapsulated FKM (TEV) gaskets - maximum operating temperature 200°F (93°C)
  • PTFE encapsulated silicone (TES) gaskets - maximum operating temperature 225°F (107°C)
Safety Notes:
  • Maximum operating temperatures for specific chemicals may be lower; contact Dixon® for specific recommendations.
  • The torque (force) required to close the handles on a pair of cam & groove fittings will vary according to the gasket chosen. Due to the nature of the PTFE material, the various PTFE gasket designs will require the most torque, increasing as you go from envelope to encapsulated, and finally, accordion.
Cam & Groove Encapsulated Gasket Chart

Size PTFE (FEP)
Encapsulated Silicone
Part Number		 PTFE (FEP)
Encapsulated FKM
Part Number		 Max. Operating
Pressure
Color: Translucent / Red
FDA Approved Materials		 Color: Translucent / Black
Color Code: None
1/2" 50-G-TES - 125 PSI
3/4" 75-G-TES 75-G-TEV 125 PSI
1" 100-G-TES 100-G-TEV 125 PSI
1-1/4" 125-G-TES 125-G-TEV 125 PSI
1-1/2 150-G-TES 150-G-TEV 125 PSI
2" 200-G-TES 200-G-TEV 125 PSI
2-1/2" 250-G-TES 250-G-TEV 125 PSI
3" 300-G-TES 300-G-TEV 125 PSI
4" 400-G-TES 400-G-TEV 125 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
