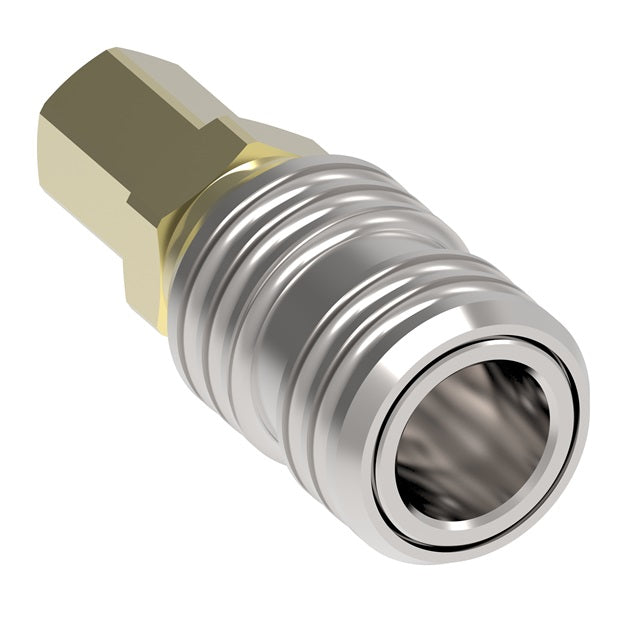

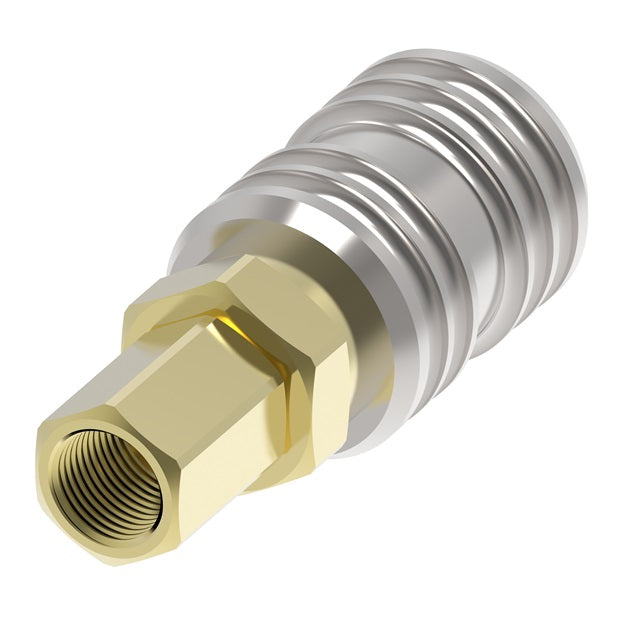

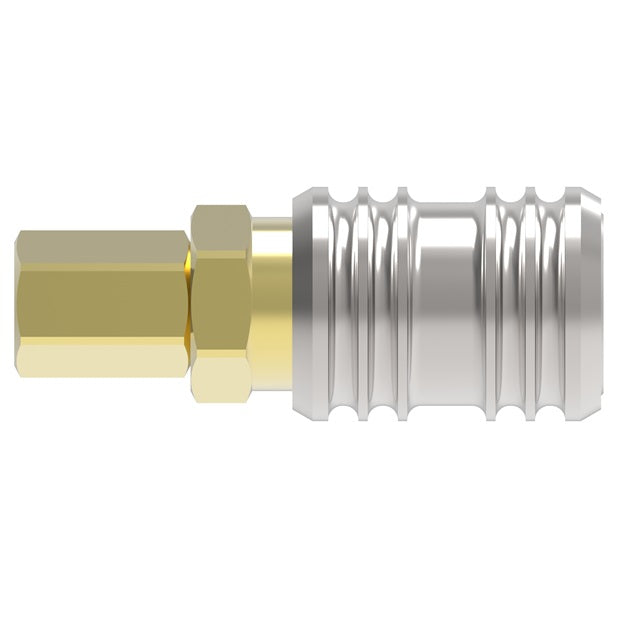

400 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 400 Series | 1/4" Female NPTF x 3/8" Body Size | Socket | NBR Seal | Brass
400 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 400 Series | 1/4" Female NPTF x 3/8" Body Size | Socket | NBR Seal | Brass
400 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 400 Series | 1/4" Female NPTF x 3/8" Body Size | Socket | NBR Seal | Brass
400 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 400 Series | 1/4" Female NPTF x 3/8" Body Size | Socket | NBR Seal | Brass

400 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 400 Series | 1/4" Female NPTF x 3/8" Body Size | Socket | NBR Seal | Brass

$26.60 - $26.60
$26.60
$26.60 - $26.60
$26.60

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 400 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 1000/400/500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.

400 series accepts Tru-Flate Interchange.
Specifications for Variant SKU: 400 Danfoss
Brand: Hansen
Series: 400 Series
Shape (Orientation): Straight
Material(s): Brass, Nickel-Plated Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Ball latching mechanism.
  • All sizes accept US Industrial Interchange.
Applications & Markets:
  • General Pneumatics
  • Construction
  • Industrial Plants
Materials:
  • Standard body material: Brass, Steel, Stainless Steel, Nickel Plated Steel Sleeve
  • Standard seal material: Nitrile (NBR)
Specifications:
  • 1/4" & 1/2" accept ISO 6150 B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
400 3/8" 69 bar 1,000 psi 276 bar 4,000 psi 1,274 lpm 336 gpm
Interchangeability
All Sizes 1/4" & 1/2" 400 Series
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)		 Tru-Flate
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
Plug/Male
(Figure 2A)
400 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
400 Socket/Female 3/8" 1/4" 1/4-18 Female NPTF Brass 1 2.10"
(53.34mm)		 1.13"
(28.70mm)		 0.88"
(22.35mm)
420 Socket/Female 3/8" 3/8" 3/8-18 Female NPTF Brass 1 2.35"
(59.69mm)		 1.13"
(28.70mm)		 0.88"
(22.35mm)
440 Socket/Female 3/8" 1/2" 1/2-14 Female NPTF Brass 1 2.62"
(66.55mm)		 1.13"
(28.70mm)		 1.00"
(25.40mm)
400 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
C D Hex
41 Plug/Male 3/8" 1/4" 1/4-18 Female NPTF Steel 2 1.63"
(41.40mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
41G Plug/Male 3/8" 1/4" 1/4-18 Female NPTF Steel 2 2.56"
(65.02mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
43 Plug/Male 3/8" 3/8" 3/8-18 Female NPTF Steel 2 1.81"
(45.97mm)		 0.94"
(23.88mm)		 0.81"
(20.57mm)
43G** Plug/Male 3/8" 3/8" 3/8-18 Female NPTF Steel 2 2.62"
(66.55mm)		 0.84"
(21.34mm)		 0.75"
(19.05mm)
45E Plug/Male 3/8" 1/2" 1/2-14 Female NPTF Steel 2 2.06"
(52.32mm)		 1.15"
(29.21mm)		 1.00"
(25.40mm)
B43 Plug/Male 3/8" 3/8" 3/8-18 Female NPTF Brass 2 1.81"
(45.97mm)		 0.91"
(23.11mm)		 0.81"
(20.57mm)
31AP25F Plug/Male 3/8" 1/4" 1/4-18 Female NPTF Steel 2A 1.60"
(40.64mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
31AP37F Plug/Male 3/8" 3/8" 3/8-18 Female NPTF Steel 2A 1.78"
(45.21mm)		 0.94"
(23.88mm)		 0.81"
(20.57mm)

** With Bleeder Ball Check - Reduces Hose Whip.
