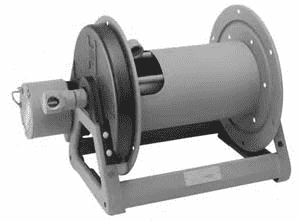

4000 Hannay Air Powered Rewind Reel (A-4018-17-18)

A-4018-17-18 by Hannay | 4000 Series | Air Powered Rewind Reel

Save $843.53 Save $843.53
$2,108.83
$2,108.83 - $2,108.83
$2,108.83
$1,265.30
$1,265.30 - $1,265.30
$1,265.30



4000 Air Powered Rewind Reels To handle single 3/4" or 1" I.D. hose.
Specifications for Variant SKU: A-4018-17-18 Hannay
Series: 4000 Series
Applications:
  • Fuel Dispensing
  • Fire Protection
  • Water Supply
  • Chemical Transfer
Features:
  • Lightweight compact reels designed for long length of hose.
  • Chain and sprocket drive powered by a compressed air motor.
  • Comet brake is standard on power rewind reels.
  • Standard inlet 90 deg. ball bearing swivel joint 1" female NPT threads.
  • Standard outlet 1" female NPT threads.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/4" 1"
O.D. (in) 1-9/32" 1-9/16" A B E Crank E Power F Crank F Power X
A-4018-17-18 50' length 35' length 51 lbs. 15" 10" 16.5" 19" 27" 20.5" 13.5"
A-4024-17-18 100' length 50' length 61 lbs. 21" 16" 16.5" 19" 33" 26.5" 19.5"
A-4030-17-18 150' length 75' length 72 lbs. 27" 22" 16.5" 19" 39" 32.5" 25.5"
A-4038-17-18 200' length 100' length 85 lbs. 35" 30" 16.5" 19" 47" 40.5" 33.5"
