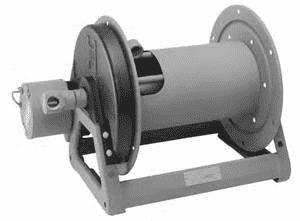

4000 Hannay Hydraulic Powered Rewind Reel (HD-4038-17-18)

HD-4038-17-18 by Hannay | 4000 Series | Hydraulic Powered Rewind Reel

Save $787.73 Save $787.73
$1,969.33
$1,969.33 - $1,969.33
$1,969.33
$1,181.60
$1,181.60 - $1,181.60
$1,181.60



4000 Hydraulic Powered Rewind Reels To handle single 3/4" or 1" I.D. hose.
Specifications for Variant SKU: HD-4038-17-18 Hannay
Series: 4000 Series
Applications:
  • Fuel Dispensing
  • Fire Protection
  • Water Supply
  • Chemical Transfer
Features:
  • Lightweight compact reels designed for long length of hose.
  • Chain and sprocket drive powered by a hydraulic motor.
  • Comet brake is standard on power rewind reels.
  • Standard inlet 90 deg. ball bearing swivel joint 1" female NPT threads.
  • Standard outlet 1" female NPT threads.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/4" 1"
O.D. (in) 1-9/32" 1-9/16" A B E Crank E Power F Crank F Power X
HD-4018-17-18 50' length 35' length 51 lbs. 15" 10" 16.5" 19" 27" 20.5" 13.5"
HD-4024-17-18 100' length 50' length 61 lbs. 21" 16" 16.5" 19" 33" 26.5" 19.5"
HD-4030-17-18 150' length 75' length 72 lbs. 27" 22" 16.5" 19" 39" 32.5" 25.5"
HD-4038-17-18 200' length 100' length 85 lbs. 35" 30" 16.5" 19" 47" 40.5" 33.5"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
