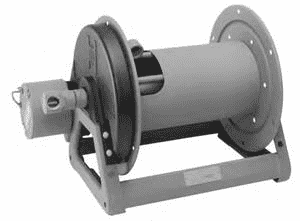

4024-17-18 by Hannay | #12-24 | 4000 Series | Manual Rewind Reel

$471.33



4000 Manual Rewind Reels To handle single 3/4" or 1" I.D. hose.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4024-17-18 Hannay
Series: 4000 Series
Applications:
  • Fuel Dispensing
  • Fire Protection
  • Water Supply
  • Chemical Transfer
Features:
  • Lightweight compact reels designed for long length of hose.
  • Direct crank rewind is removable.
  • Manual reels include: cam-lock drag brake, spring actuated pin lock
  • Standard inlet 90 deg. ball bearing swivel joint 1" female NPT threads.
  • Standard outlet 1" female NPT threads.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/4" 1"
O.D. (in) 1-9/32" 1-9/16" A B E Crank E Power F Crank F Power X
4018-17-18 50' length 35' length 36 lbs. 15" 10" 16.5" 19" 27" 20.5" 13.5"
4024-17-18 100' length 50' length 46 lbs. 21" 16" 16.5" 19" 33" 26.5" 19.5"
4030-17-18 150' length 75' length 57 lbs. 27" 22" 16.5" 19" 39" 32.5" 25.5"
4038-17-18 200' length 100' length 70 lbs. 35" 30" 16.5" 19" 47" 40.5" 33.5"
