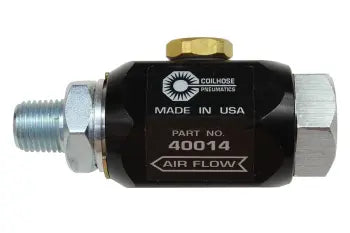

40014 by Coilhose | 1/4" In-Line Lubricator | Anodized Aluminum | 5.0 cc Capacity

40014 by Coilhose | 1/4" In-Line Lubricator | Anodized Aluminum | 5.0 cc Capacity

Save $5.52 Save $5.52
$49.65
$49.65 - $49.65
$49.65
$44.13
$44.13 - $44.13
$44.13
Coilhose Pneumatics - In-line Series - In-Line Lubricators
Specifications for Variant SKU: 40014 Coilhose
Material(s): Anodized Aluminum
Overview:
  • The In-Line Series Filters, Regulators and Lubricators are designed to increase air tool efficiency by providing filtration, regulation and lubrication at the tool. These economical units are particularly useful when it is difficult to maintain air quality over long distances or when a tool is used in multiple locations. All units have female inlet threads and male outlet threads. This series is particularly useful for air nailers, staplers and other small pneumatic tools.
  • In-Line Lubricators provide at-the-tool lubrication to keep tools running at peak efficiency. They are an effective alternative to larger more costly units that may not deliver lubricant to the tool due to excessive line length. Ideal for intermittent use type tools such as staplers and nailers.
Features:
  • The filling of fluid on the In-Line Lubricators is simple via brass fill cap.
  • Provides at-the-tool lubrication.
  • Measured amount of oil mist with each cycle.
  • Filtration screen prevents line debris from contaminating oil.
  • 7.5 cc features a sight glass for easily checking oil level.
Specifications:
  • Maximum Supply Pressure: 150 PSI
  • Maximum Operating Temp.: 250° F
  • Body: Anodized Aluminum
  • Fill cap: Brass

Model Pipe Size Oil Capacity Length Diameter Weight
40014 1/4" 5.0 cc 3" 1-1/3" 5 oz.
40038 3/8" 5.0 cc 3" 1-1/3" 5.5 oz.
50014 1/4" 7.5 cc 2" 3-1/4" 5.3 oz
50038 3/8" 7.5 cc 2" 3-1/4" 5.3 oz
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
