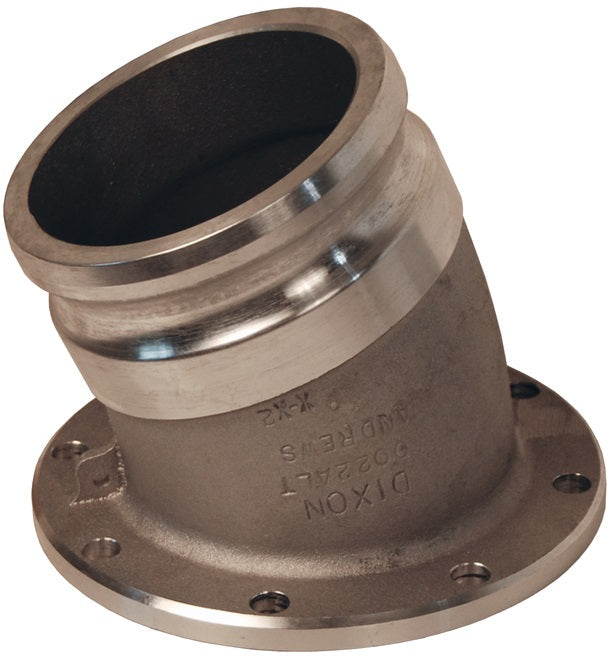

40022ALTAL by Dixon Valve | Cam & Groove TTMA Flange Adapter | 22-1/2° Elbow | 4" Adapter x 4" TTMA Flange | Aluminum

40022ALTAL by Dixon Valve | Cam & Groove TTMA Flange Adapter | 22-1/2° Elbow | 4" Adapter x 4" TTMA Flange | Aluminum

Save $11.08 Save $11.08
$138.61
$138.61 - $138.61
$138.61
$127.53
$127.53 - $127.53
$127.53

Dixon Valve
Tank Truck | Cam & Groove Adapter x TTMA Flange | 22-1/2° Elbow

Designed for use with liquids.
Specifications for Variant SKU: 40022ALTAL Dixon
Brand: Bayco
Shape (Orientation): 22.5 Degree
Cam Type: Other
Ends Configuration: 4in Male Cam & Groove, 4in TTMA Flange
Material(s): Aluminum
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Note:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 Adapter x TTMA Flange
40022ALTAL 4" x 4"
