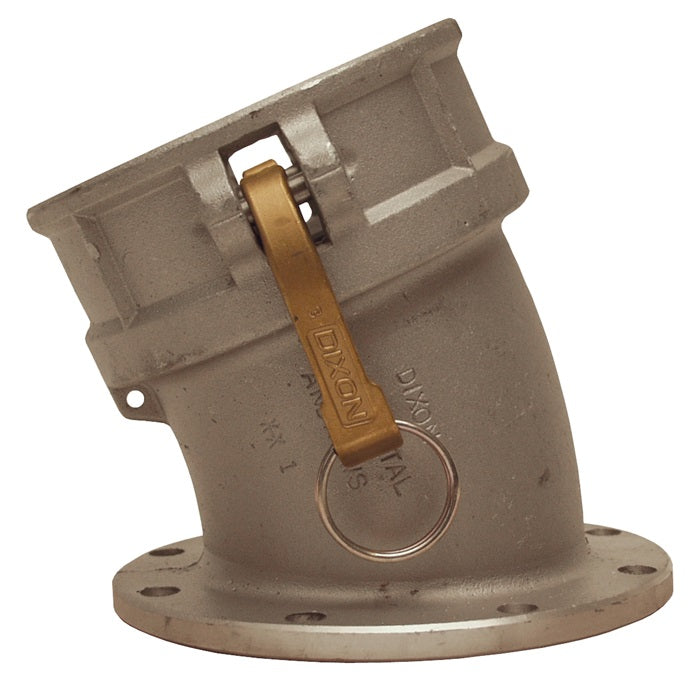

40022DLTAL by Dixon Valve | Cam & Groove TTMA Flange Coupler | 22-1/2° Elbow | 4" Coupler x 4" TTMA Flange | Aluminum

40022DLTAL by Dixon Valve | Cam & Groove TTMA Flange Coupler | 22-1/2° Elbow | 4" Coupler x 4" TTMA Flange | Aluminum

Save $9.58 Save $9.58
$119.70
$119.70 - $119.70
$119.70
$110.12
$110.12 - $110.12
$110.12

Dixon Valve
Tank Truck | Cam & Groove Coupler x TTMA Flange | 22-1/2° Elbow

Designed for use with liquids.
Specifications for Variant SKU: 40022DLTAL Dixon
Brand: Bayco
Shape (Orientation): 22.5 Degree
Cam Type: Other
Ends Configuration: 4in Female Cam & Groove, 4in TTMA Flange
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Buna-N Gasket.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Note:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 Coupler x TTMA Flange
40022DLTAL 4" x 4"
