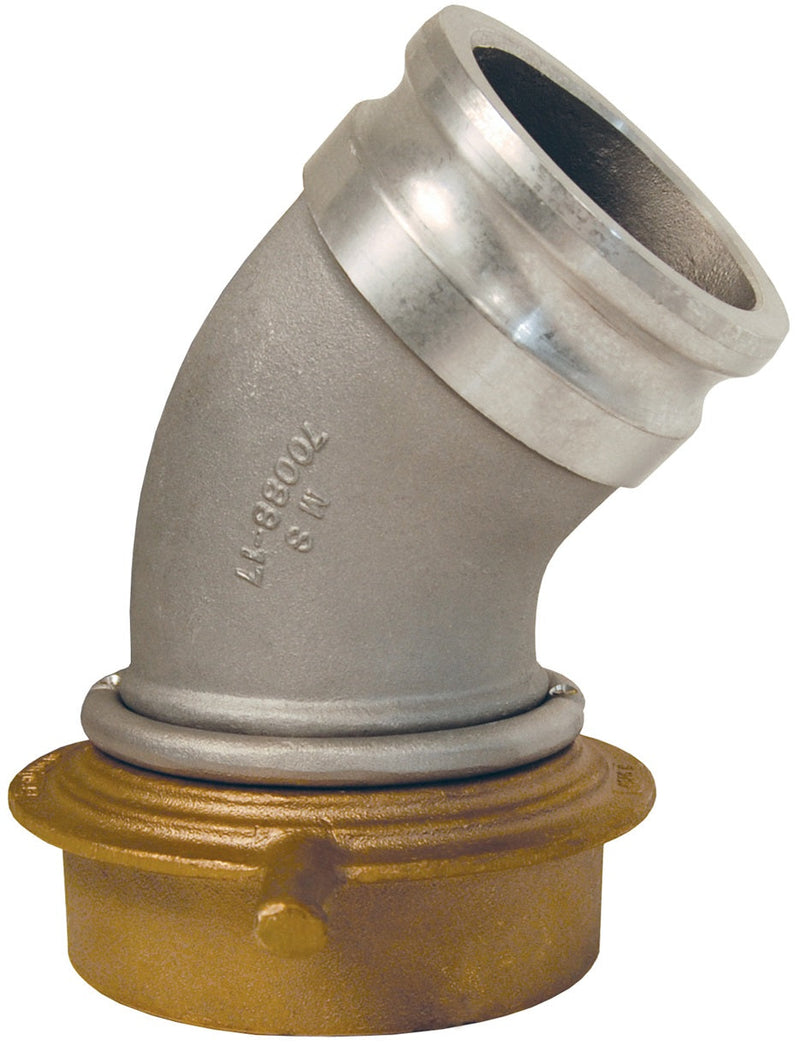

40A-45TCAL by Dixon Valve | Tank Car Adapter | 45° Elbow | 4" Adapter x 5" Railroad Tank Car Swivel Thread | Aluminum

40A-45TCAL by Dixon Valve | Tank Car Adapter | 45° Elbow | 4" Adapter x 5" Railroad Tank Car Swivel Thread | Aluminum

Save $29.62 Save $29.62
$370.11
$370.11 - $370.11
$370.11
$340.49
$340.49 - $340.49
$340.49

Dixon Valve
Tank Car Adapter | 45° Elbow
Specifications for Variant SKU: 40A-45TCAL Dixon
Shape (Orientation): 45 Degree
Cam Type: Type A
Ends Configuration: Railroad Thread, 4in Male Cam & Groove
Material(s): Aluminum, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel
Features:
  • Standard 5" Railroad Tank Car thread.
Construction:
  • Nitrile Rubber gasket in the threaded end.
  • Unit has a long handle brass swivel nut and a swivel retaining ring.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Stainless steel adapters are not compatible with the aluminum and brass adapters.
356T6 Aluminum
Part Number		 Size
40A-45TCAL 4"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
